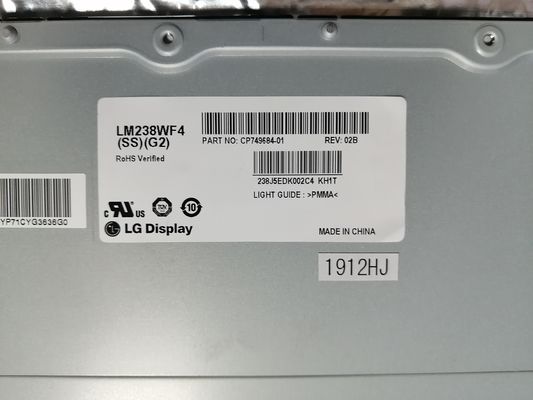

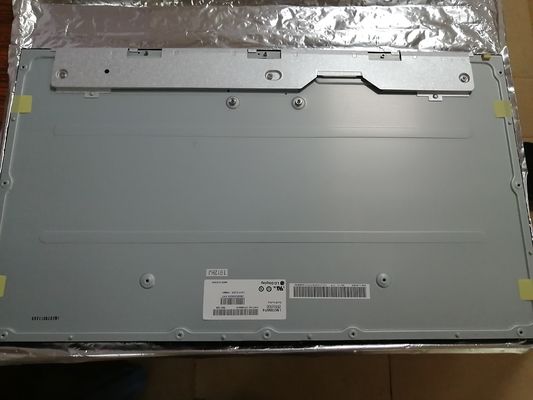

Product Details:
|
| MODEL NUMBER: | LM238WF4-SSG1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 23.8"inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 92PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 250cd/m2 TFT LCD Panel,23.8" TFT LCD Panel,92PPI Capacitive LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | LM238WF4-SSG1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM238WF4 (SS)(G1) | |
| Panel Size | 23.8 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 100% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0915×0.2745 mm | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing | 527.04(W)×296.46(H) mm | Overall Dim. | 534.9(W)×306.95(H) mm |
| Bezel Opening | - | Overall Depth | 8.9/12.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | 4-side borderless | |

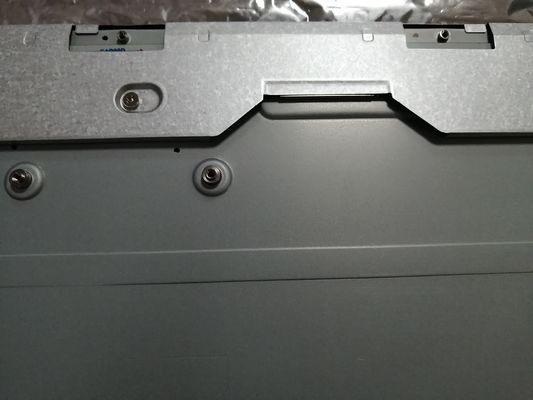

| Fixation : | Rear mounting holes (16-M3) | |||
| Other Detail : | Mass | 2.00/2.10Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 11.5W (Typ.) |
| Signal Electrical : | Input Current | 0.41/0.51A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.1/2.55W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160B | |
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 14S4P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 60/65mA (Typ./Max.) | Input Voltage | 39±2.8V | ||
| Consumption | 9.4/10.1W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 635×370×400 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
