127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1

127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1
127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1 127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1 127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1

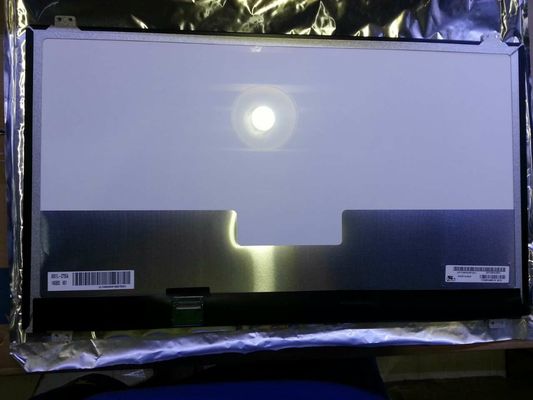

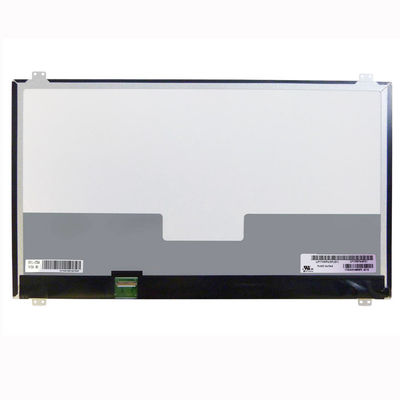

Large Image :  127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP173WF4-SPD1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

127PPI 17.3" Industrial LCD Panel 300cd/m2 1920×1080 LP173WF4-SPD1

Description
MODEL NUMBER: LP173WF4-SPD1 BRAND: LG Display
SIZE: 17.3INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 127PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

17.3" Industrial LCD Panel

,

127PPI Industrial LCD Panel

,

Square Tft Display 300cd/m2

LG Display LP173WF4-SPD1 Application Details

Basic Information :
Brand

LP173WF4-SPD1Model
Type
a-Si TFT-LCD , LCM
Used For

17.3 inchScreen Size
Alias
LP173WF4 (SP)(D1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.5G (14.7 m/s²)Vibration



LG Display LP173WF4-SPD1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.0663×0.1989 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1989×0.1989 (H×V) [127PPI]
Mechanical Size :
Active Area(mm)
381.888(H) × 214.812(V)
Bezel Area(mm)
-
Outline Dim.(mm)
-
Depth(mm)
5.7/6.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
550g (Max.)
Treatment
Antiglare



LG Display LP173WF4-SPD1 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Display Mode
AH-IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Typ./Max.)(13 points)



LG Display LP173WF4-SPD1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
TBD
Consumption
TBD
Signal Type :
eDP (2 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT05Q-30S-H10-MN
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



LG Display LP173WF4-SPD1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.5/12.0/21.0V (Min./Typ./Max.)
Current Supply
TBD
Consumption
TBD





LG Display LP173WF4-SPD1 Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box - 478×365×328 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
