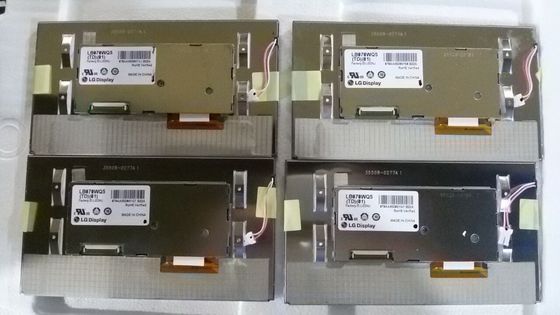

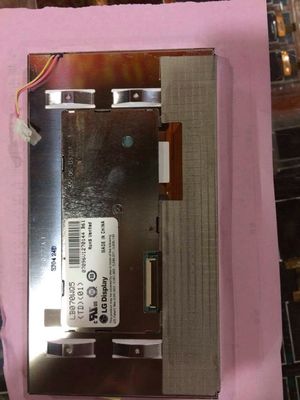

Product Details:
|
| MODEL NUMBER: | LB070WQ5-TD01 | BRAND: | LG. LCD |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 480(RGB)×240 [WQVGA] 77PPI |
| VIEWING ANGLEG: | 70/70/50/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 M/s²) |
| Highlight: | 480x240 Lcd Video Module,500cd/m2 Lcd Video Module,7.0" Square Tft Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LB070WQ5-TD01 | a-Si TFT-LCD , LCM | LB070WQ5 (TD)(01) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 85 °C | 2.84G (27.8 m/s²) |
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×240, WQVGA | RGB Vertical Stripe | 0.1083×0.3450 mm | 0.3169×0.3450 mm [77PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 155.952×82.8 mm | 158.4×85.1 mm | 168.8×93.5 mm | 7.3/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 17:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 210/220g (Typ./Max.) | - | Antiglare | ||
| Holes & Brackets : | Rear mount holes (4-M2) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/60 (Typ.)(CR≥10) | 10/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| White Uniformity : | 1.25 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 15K(Typ.) | - | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 565/580/730V (Min./Typ./Max.) | 3/6/6.5mA (Min./Typ./Max.) | 3.48/3.83W (Typ./Max.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 40/80KHz (Min./Max.) | 1480/1780V (Max.)(Ta=+25/-30℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| - | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-LH | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | - | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| TTL (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | FH12K-40S-0.5SH | 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-080A | |

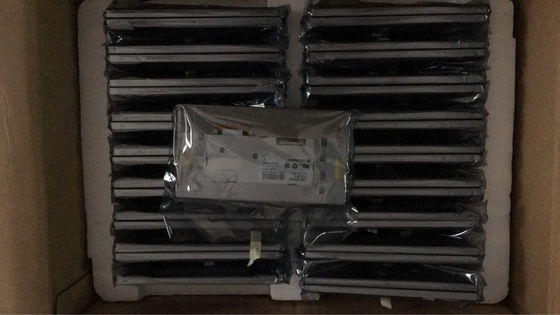

| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 36 pcs / box | - | 475×348×182 mm (L×W×H) |
