Product Details:
|
| MODEL NUMBER: | LM490DQ1-SSA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 49 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 5120(RGB)×1440 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 5120x1440 IPS LCD Panel,49in IPS LCD Panel,108PPI Square Tft Display |
||
| Basic Information : | Brand | Model | LM490DQ1-SSA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 49" | Alias | LM490DQ1 (SS)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 5120(RGB)×1440 | Dot Pitch(mm) | 0.078×0.234 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.234×0.234 (H×V) [108PPI] | |
| Mechanical Size : | Active Area(mm) | 1198.08(H) × 336.96(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 1209.9(H) × 360.45(V) | Depth(mm) | 18.3 (Typ.) | |
| Outline Features : | Form Style | Curved Display, R3800 | Outline Shape | 3-side borderless |
| Aspect Ratio | >3:1 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes | |||
| Other Spec : | Weight | 74.0Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 10.0±0.5V | Current Supply | 0.83/1.03 | ||
|---|---|---|---|---|---|---|
| Consumption | 8.3/10.3W (Typ./Max.) | |||||
| Signal Type : | eDP (2 ch, 4 Lanes), HBR2 (5.4G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||

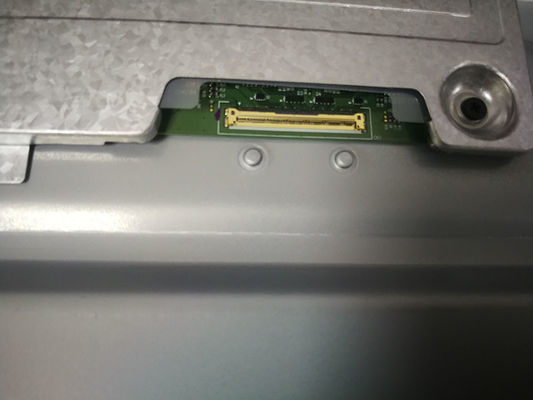

| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20525-060E-01 | 1 pcs | 60 pins | 0.4 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 47±3.3V | Current Supply | 115/120mA (Typ./Max.) | ||
| Consumption | 43.2/46.1W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WS-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 5 pcs / box | - | 1290×550×465 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
