Product Details:
|
| MODEL NUMBER: | LD420WUB-SCA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 42 Inch | BRIGHTNESS: | 700CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 52PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | 24in Tft Lcd Screen,700cd/M2 Tft Lcd Screen,2PPI Square LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | LD420WUB-SCA1 | |
|---|---|---|---|---|
| Diagonal Size | 42" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LD420WUB (SC)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.1615×0.4845 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.4845×0.4845 mm (H×V) [52PPI] | |
| Mechanical Size : | Display Area | 930.24×523.26 mm (H×V) | Bezel Area | 936.2×529.2 mm (H×V) |
| Outline Dim. | 956.4×549.4 mm (H×V) | Outline Depth | 35.5/54.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (8-M4); Rear mounting holes (8-M4) | |||
| Videowall Seam : | 26.2 mm (Active to Active) | |||
| Other Features : | Weight | 10.5/11.5Kgs (Typ./Max.) | Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Basic Information : | Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 9 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Color Numbers | 16.7M/1.06B (8-bit / 8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Direct light type | |

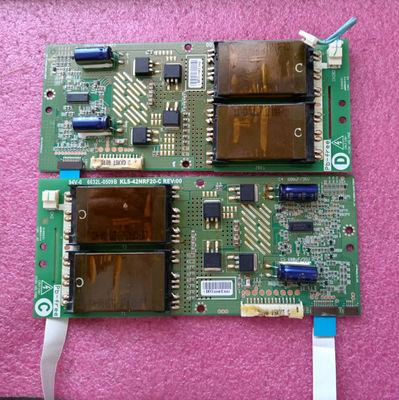

| Interface Features : | Type | Connector | Position | - | Lamp Driver | With Inverter |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | S14B-PH-SMC-TB | 2.0 mm | 14 pins | 1 pcs | ||
| JST | S12B-PH-SMC-TB | 2.0 mm | 12 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 24.0V (Typ.) | Current Input | 7/8A (Typ./Max.) | ||
| Consumption | 168/192W (Typ./Max.) | |||||
| Signal Systerm : | LVDS (2 ch, 8/10-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 455/650/845mA (Min./Typ./Max.) | ||
| Consumption | 7.8/10.1W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-R51S-HF | 0.5 mm | 51 pins | 1 pcs | LVDS-51P2C10B-030A | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 12 pcs / box | - | 1140×990×810 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
