Product Details:
|
| MODEL NUMBER: | LD490EPN-UKH1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 49 Inch | BRIGHTNESS: | 1500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(3)×1080, FHD, 45PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 45PPI Tft Lcd Screen,1920x1080 Tft Lcd Screen,49 Inch WLED Tft Lcd Display |
||
| Basic Detail : | Manufacturer | Model Name | LD490EPN-UKH1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LD490EPN (UK)(H1) | |
| Panel Size | 49 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 1500 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 9.5 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Support Color | 16.7M (8-bit) |
| Color Temperature | 9972K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 68% | sRGB | 95% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Pixel Features : | Number of Pixel | 1920(3)×1080 [FHD] | Arrangement | RGBW Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.18642×0.55926 mm | Pixel Pitch(W×H) | 0.55926×0.55926 mm [45PPI] | |
| Physical Size : | Active Viewing | 1073.78(W)×604(H) mm | Overall Dim. | 1091.6(W)×621.8(H) mm |
| Bezel Opening | 1079.8(W)×610(H) mm | Overall Depth | 12.7/31.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 11.8/12.0Kgs (Typ./Max.) | Surface | Antiglare (Haze 3%), Hard coating (2H) |
| Signal Electrical : | Input Current | 467/607mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.6/7.3W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RXE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 60K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 20022WR-H14B2 | 1 pcs | 2.0 mm | 14 pins | ||

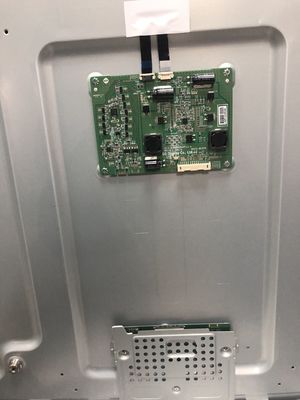

| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 3.79/4.17A (Typ./Max.) | Input Voltage | 24.0±2.4V | ||
| Consumption | 90.9/100.1W (Typ./Max.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 18 pcs / box | 1300×1140×820 mm |
