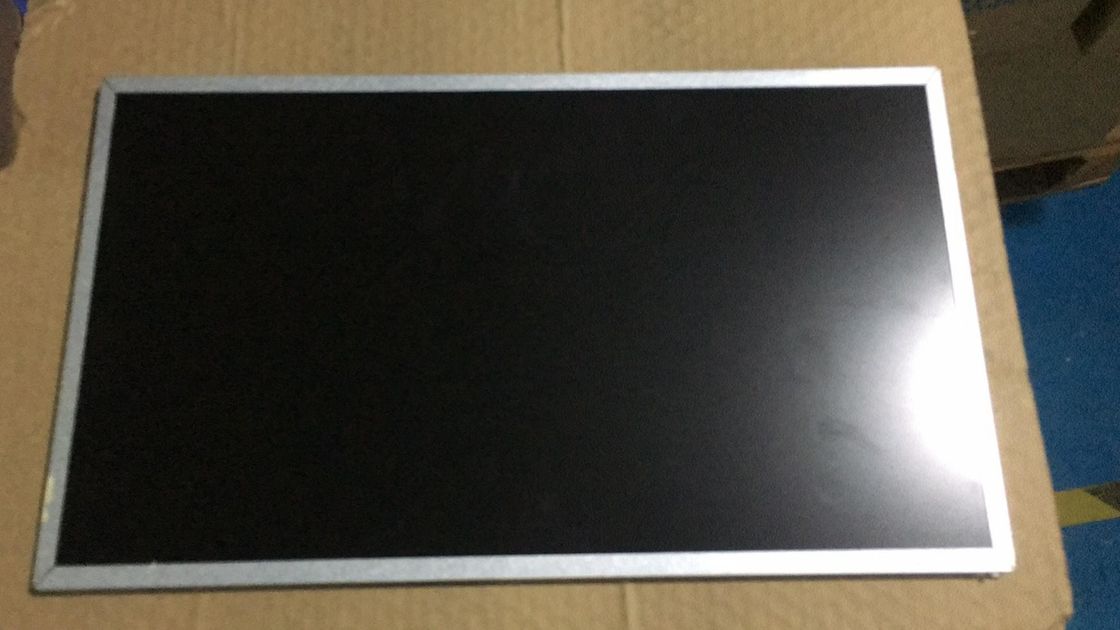

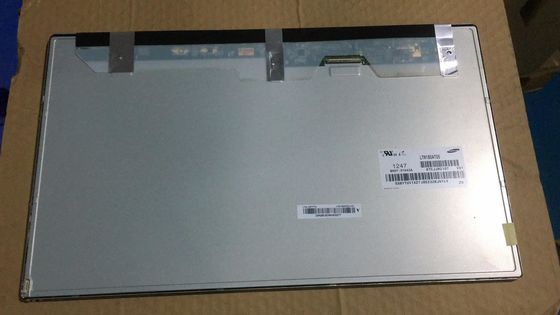

18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001

18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001
18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001 18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001 18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001

Large Image :  18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LC185EXE-TEA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 160PCS
Contact Now

18.5 Inch 84PPI 1366x768 TFT LCD Panel 250cd/M2 LC185EXE-TEA1 ISO9001

Description
MODEL NUMBER: LC185EXE-TEA1 BRAND: LG Display
SIZE: 18.5 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768, WXGA, 84PPI
VIEWING ANGLEG: 85/85/75/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

84PPI TFT LCD Panel

,

1366x768 TFT LCD Panel

,

ISO9001 Tft Lcd Display

LG Display LC185EXE-TEA1 Application Details

Basic Info :
Panel Brand

LC185EXE-TEA1Panel Model
Diagonal Size
18.5"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LC185EXE (TE)(A1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LC185EXE-TEA1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.100×0.300 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.300×0.300 mm (H×V) [84PPI]
Mechanical Size :
Display Area
409.8×230.4 mm (H×V)
Bezel Area
413.4×234.0 mm (H×V)
Outline Dim.
430.4×254.6 mm (H×V)
Outline Depth
10.2 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (2-M3) on left bezel
Other Features :
Weight
1.00/1.05Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LC185EXE-TEA1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.100×0.300 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.300×0.300 mm (H×V) [84PPI]
Mechanical Size :
Display Area
409.8×230.4 mm (H×V)
Bezel Area
413.4×234.0 mm (H×V)
Outline Dim.
430.4×254.6 mm (H×V)
Outline Depth
10.2 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (2-M3) on left bezel
Other Features :
Weight
1.00/1.05Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)

LG Display LC185EXE-TEA1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
2 strings
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
2 strings
Position
Edge light type (Right side)
Lamp Electrical :
Voltage Input
41.6±3.9V
Current Input
110/120mA (Typ./Max.)
Consumption
9.2/10.0W (Typ./Max.)

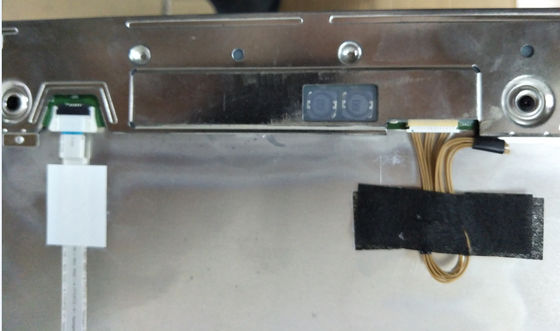

Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
YEONHO
10019HR-H06B
1.0 mm
6 pins
1 pcs
BLE-6PINS-CNAANC



LG Display LC185EXE-TEA1 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
0.90/1.17A (Typ./Max.)
Consumption
3.6/4.7W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
IS100-L30O-C23
1.0 mm
30 pins
1 pcs
LVDS-30P1C8B-170K



LG Display LC185EXE-TEA1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
16 pcs / box - 365×315×492 mm

  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
