LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY

LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY
LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY

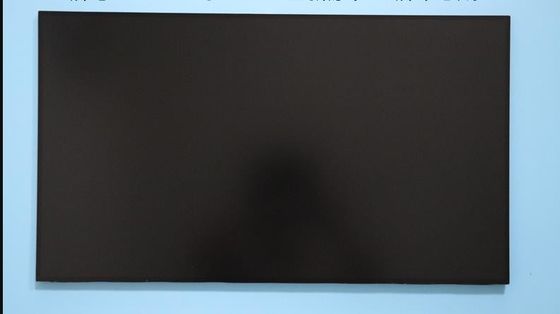

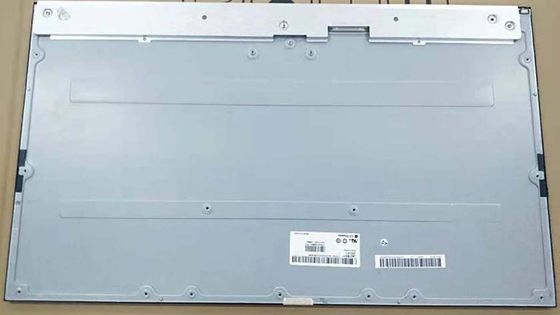

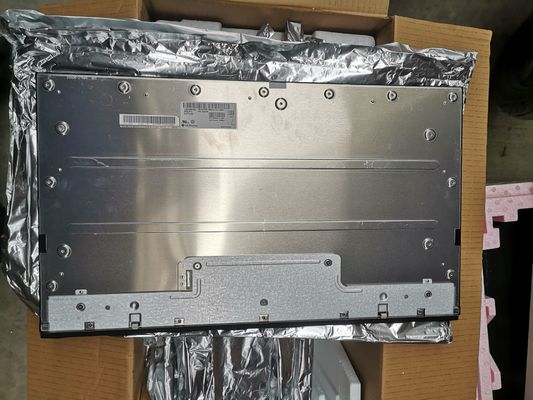

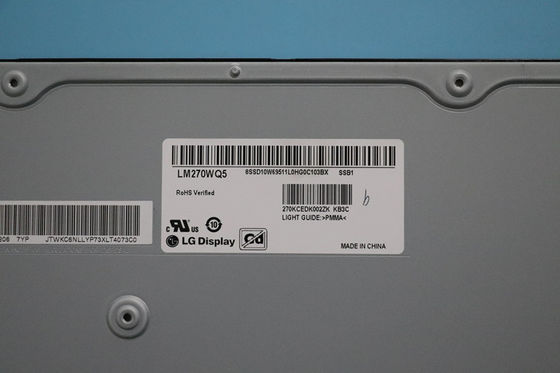

Large Image :  LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LM270WQ5-SSB1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 160PCS

LM270WQ5-SSB1 LG Display 27.0" 2560×1440 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM270WQ5-SSB1 BRAND: LG Display
SIZE: 27.0INCH BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440, Quad-HD, 108PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

81PPI Lcd Display Panels

,

2560×1440 Square Tft Display

,

Antiglare NEC TFT Display

LG Display LM270WQ5-SSB1 Application Details

Basic Detail :
Manufacturer

LM270WQ5-SSB1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM270WQ5 (SS)(B1)
Panel Size
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM270WQ5-SSB1 Optical Details

Basic Detail :
Luminance
-
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
6 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AH3-IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)



LG Display LM270WQ5-SSB1 Mechanical Details

Pixel Features :
Number of Pixel
2560(RGB)×1440, Quad-HD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0777×0.2331 mm
Pixel Pitch(W×H)
0.2331×0.2331 mm [108PPI]
Physical Size :
Active Viewing
596.736(W)×335.664(H) mm
Overall Dim.
-
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
4-side borderless





LG Display LM270WQ5-SSB1 Interface Detail

Signal Electrical :
Input Current
510/630mA (Typ./Max.)
Input Voltage
10.0V (Typ.)
Consumption
5.1/6.3W (Typ.Max.)
Signal Interface
LVDS (4 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
UJU
0.5 mm
51 pins
1 pcs

UJU
0.5 mm
41 pins
1 pcs



LG Display LM270WQ5-SSB1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
-
Lamp Life
30K(Min.) (Hours)





whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm. As a AH3-IPS, Normally Black, Transmissive LCM product, LM270WQ5-SSB1 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours. LM270WQ5-SSB1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM270WQ5-SSB1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display.
