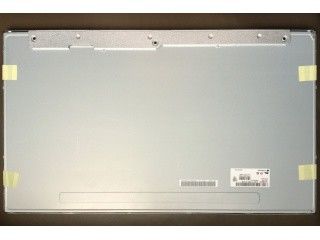

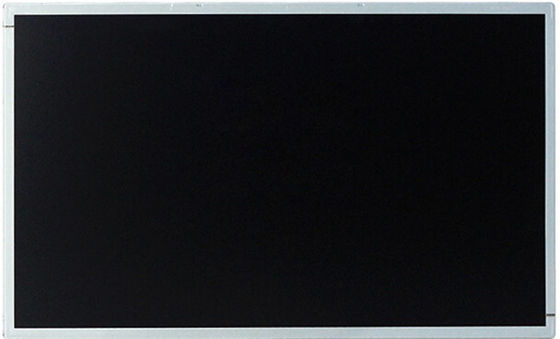

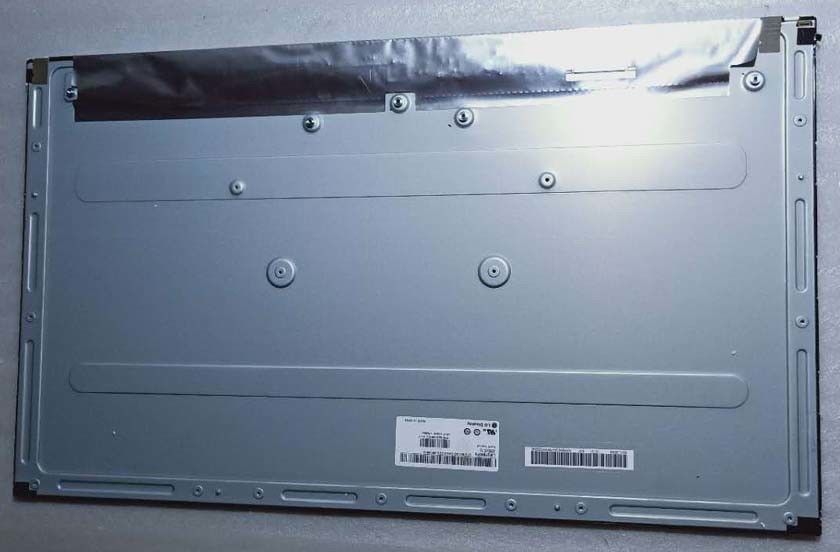

Product Details:
|
| MODEL NUMBER: | LM270WF5-SLM1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 81PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | IPS Lcd Display Panels,81PPI Square Tft Display,81PPI NEC TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM270WF5-SLM1 | a-Si TFT-LCD , LCM | LM270WF5 (SL)(M1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 27.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.1038×0.3114 mm | 0.3114×0.3114 mm [81PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 597.888×336.312 mm | 602.0×340.4 mm | 630×368.2 mm | 8.7/12.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.15/3.31Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 95% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.82/1.025A (Typ./Max.) | 5.0V (Typ.) | 4.10/5.13W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160B | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Right side) | 3 strings | 14S3P | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 120/130mA (Typ./Max.) | 43.4±2.8V | 15.5/16.6W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM06B-SHJH(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CNAACC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 10 pcs / box | - | 700×355×430 mm (L×W×H) |
