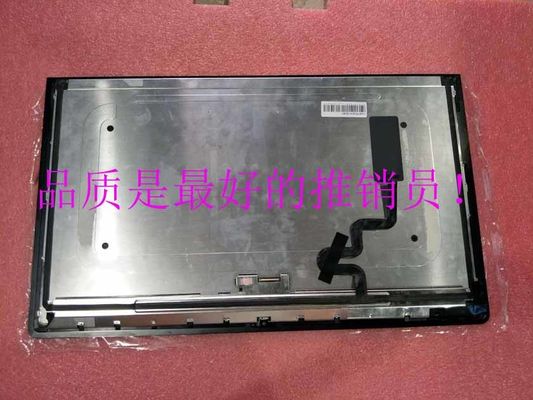

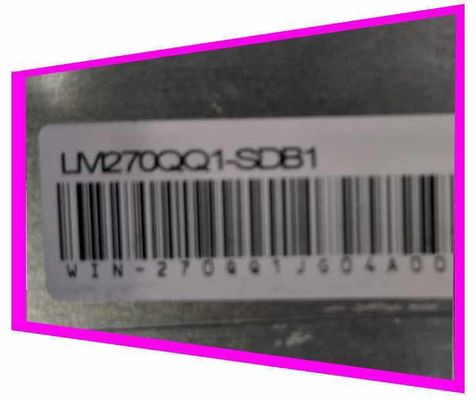

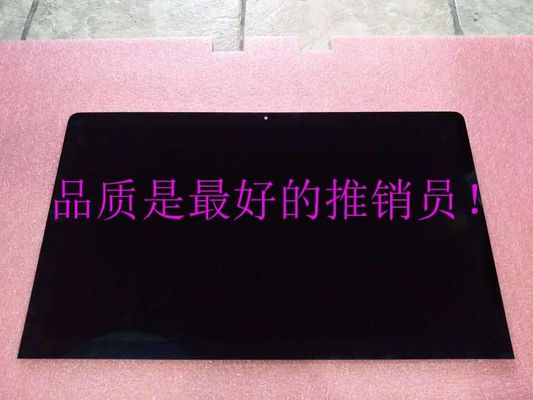

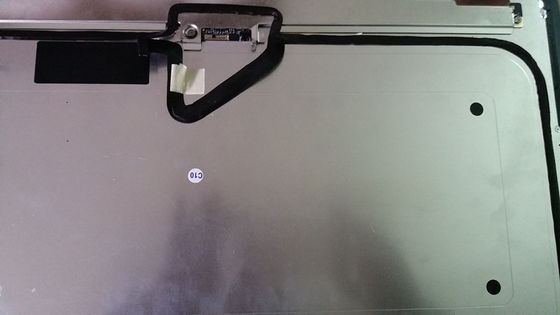

Product Details:
|
| MODEL NUMBER: | LM270QQ1-SDB1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 5120(RGB)×2880, QQHD, 218PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | NTSC Lcd Video Panel,218PPI TFT LCD Panel,5120×2880 VGA Lcd Display Panels |
||
| Basic Info : | Panel Brand | Panel Model | LM270QQ1-SDB1 | |
|---|---|---|---|---|
| Diagonal Size | 27.0" | Application | ||
| Panel Type | Oxide TFT-LCD , LCM | Model Alias | LM270QQ1 (SD)(B1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 5120(RGB)×2880 [QQHD] | Dot Pitch | 0.03875×0.11625 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.11625×0.11625 mm (H×V) [218PPI] | |
| Mechanical Size : | Display Area | 595.2×334.8 mm (H×V) | Bezel Area | - |
| Outline Dim. | 649.84×387.13 mm (H×V) | Outline Depth | 13.97 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Normal bezel | |
| Other Features : | Weight | - | Surface | Hard coating (3H) |
| Basic Information : | Brightness | - | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AH-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 16.7M (8-bit) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type |
with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 595.2(W)×334.8(H) mm, outline size of 649.84(W)×387.13(H) mm, with surface treament of Hard coating (3H). As a AH-IPS, Normally Black, Transmissive LCM product, LM270QQ1-SDB1 can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours. LM270QQ1-SDB1 utilizes eDP (2 ch, 4 Lanes) as it's signal inputting systerm Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM270QQ1-SDB1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
