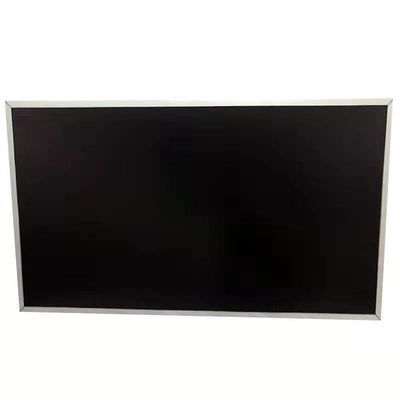

Product Details:
|
| MODEL NUMBER: | LD860EQD-FJM1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 86 Inch | BRIGHTNESS: | 500 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 51PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | NTSC Lcd Video Panel,51PPI TFT Touch Panel,51PPI Square Tft Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LD860EQD-FJM1 | a-Si TFT-LCD , LCM | LD860EQD (FJ)(M1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 86" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.1645×0.4935 mm | 0.4935×0.4935 mm [51PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 1895.04×1065.96 mm | 1897.0×1068.0 mm | 1922.2×1093.2 mm | 16.143.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 34.1/35.8Kgs (Typ./Max.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9972K | 16.7M/1.07B (8-bit / 8-bit + Dithering) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 97% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 20022WR-H14B2 | 1 pcs | 14 pins | 2.0 mm | ||
| YEONHO | 20022WR-H12B2 | 1 pcs | 12 pins | 2.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 24.0±2.4V | 8.37/9.07A (Typ./Max.) | 200.9/217.7W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 1.11/1.45A (Typ./Max.) | 13.4/17.4W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| V-by-One 16 lane | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-RXE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| JAE | FI-RXE41S-HF | 1 pcs | 41 pins | 0.5 mm | ||
| YEONHO | 20037WR-H05 | 1 pcs | 5 pins | 2.0 mm | ||

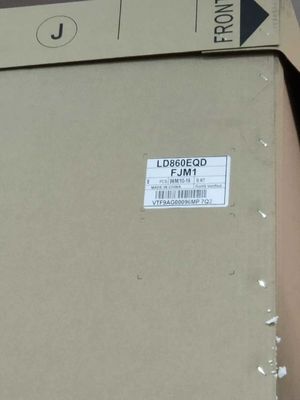

| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 6 pcs / box | - | 2280×780×1420 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
