LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI

LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI
LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI

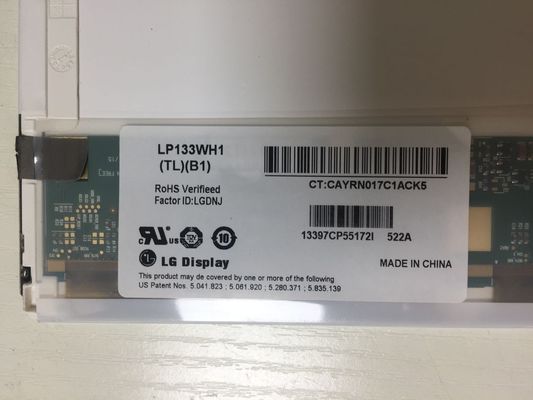

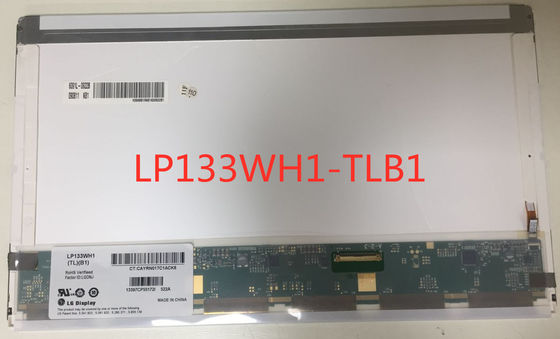

Large Image :  LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG DisplayL
Certification: ISO9001
Model Number: LP133WH1-TLB1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 160PCS
Contact Now

LP133WH1-TLB1 LG DisplayL 13.3" 1366(RGB)×768 300 cd/m² INDUSTRIAL LCD DISPLAY 118PPI

Description
MODEL NUMBER: LP133WH1-TLB1 BRAND: LG DisplayL
SIZE: 13.3 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 [WXGA] 118PPI
VIEWING ANGLEG: 40/40/10/30 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

NTSC Lcd Video Panel

,

118PPI TFT Touch Panel

,

1366×768 RGB Lcd Display Panels

LG Display LP133WH1-TLB1 Application Details

Basic Info :
Panel Brand

LP133WH1-TLB1Panel Model
Diagonal Size
13.3"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP133WH1 (TL)(B1), LGD01DA
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating



LG Display LP133WH1-TLB1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.0716×0.2148 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2148×0.2148 mm (H×V) [118PPI]
Mechanical Size :
Display Area
293.42×164.97 mm (H×V)
Bezel Area
299.5×168.4 mm (H×V)
Outline Dim.
307.6×183.1 mm (H×V)
Outline Depth
5.5 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Holes & Brackets :
Side mounting holes (6-M2) on left, right bezel
Other Features :
Weight
350g (Max.)
Surface
Antiglare (Haze 25%)



LG Display LP133WH1-TLB1 Optical Details

Basic Information :
Brightness
300 cd/m² (Min.)
Contrast Ratio
200:1 (Typ.) (Transmissive)
Viewing Angle
40/40/10/30 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
16 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
45%
sRGB
64% coverage
Adobe RGB
48% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





LG Display LP133WH1-TLB1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
12K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
7.0/12.0/21.0V (Min./Typ./Max.)
Current Input
260mA (Typ.)
Consumption
3.1/3.3W (Typ./Max.)



LG Display LP133WH1-TLB1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
315/365mA (Typ./Max.)
Consumption
1.0/1.2W (Typ./Max.)
Interface Features :
Type
Connector
Position

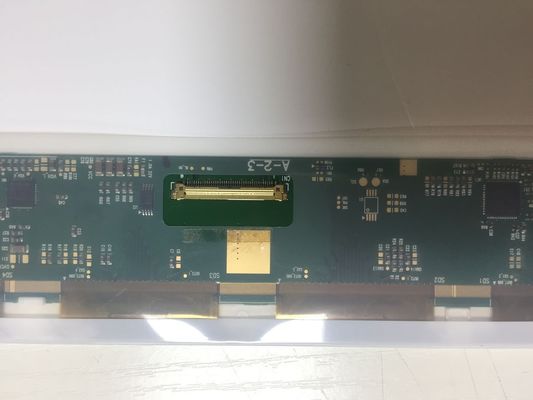

Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20455-040E-02
0.5 mm
40 pins
1 pcs
LVDS-40P1C6B-053A



LG Display LP133WH1-TLB1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
30 pcs / box - 430×378×268 mm




FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
