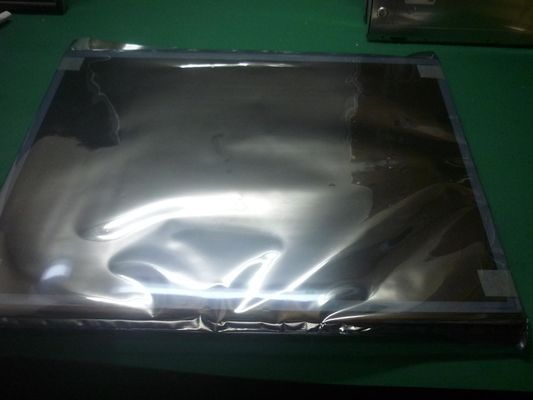

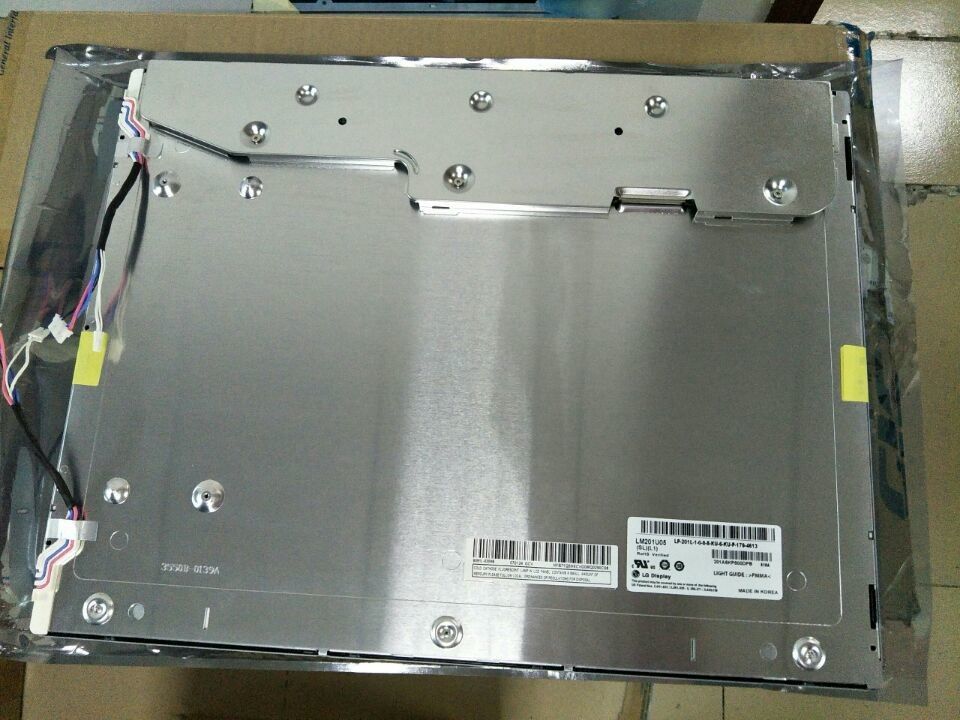

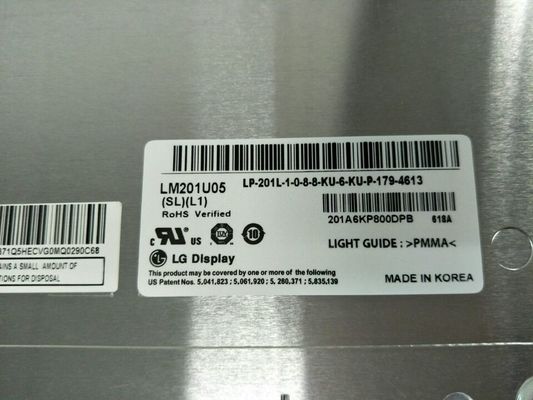

LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY

LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY
LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY

Large Image :  LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG. LCD
Certification: ISO9001
Model Number: LM201U05-SLA3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS
Contact Now

LM201U05-SLA3 LG. LCD 20.1" 1600×1200 300cd/m2 INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM201U05-SLA3 BRAND: LG. LCD
SIZE: 20.1INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1600(RGB)×1200 [UXGA] 99PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

1600×1200 NTSC Lcd Video Panel

,

99PPI TFT Touch Panel

,

300cd/m2 VGA Lcd Display Panels

LG. LCD LM201U05-SLA3 Application Details

Basic Detail :
Manufacturer

LM201U05-SLA3Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM201U05 (SL)(A3)
Panel Size
20.1 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG. LCD LM201U05-SLA3 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
7/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.43 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
94% coverage
Adobe RGB
75% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG. LCD LM201U05-SLA3 Mechanical Details

Pixel Features :
Number of Pixel
1600(RGB)×1200, UXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.085×0.255 mm
Pixel Pitch(W×H)
0.255×0.255 mm [99PPI]
Physical Size :
Active Viewing
408(W)×306(H) mm
Overall Dim.
432(W)×331.5(H) mm
Bezel Opening
413.0(W)×311.0(H) mm
Overall Depth
17.4/25.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style
Normal bezel
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
3.20Kgs (Typ.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



LG.LCD LM201U05-SLA3 Interface Detail

Signal Electrical :
Input Current
0.40/0.60A (Typ./Max.)
Input Voltage
18.0V (Typ.)
Consumption
7.2/10.8W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
UJU
IS100-L30R-C23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-010A



LG. LCD LM201U05-SLA3 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
6 pcs
Position
Edge light type (Top and Bottom)
Exchange
-
Lamp Shape
Straight
Lamp Life
45K(Min.) (Hours)
Lamp Electrical :
Input Voltage
670/700/825V (Min./Typ./Max.)
Input Current
3.0/7.0/8.0mA (Min./Typ./Max.)
Frequency
40/50/80KHz (Min./Typ./Max.)
Turn-on Voltage
1150/1450V (Max.)(Ta=+25/0℃)
Consumption
29.4/32.3W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHSR-02VS-1
3.5 mm
2 pins
2 pcs
BLL-2PINS-HL
JST
BHR-05VS-1
4.0 mm
5 pins
2 pcs
BLL-5PINS-HHNLL
Backlight Driver :
No

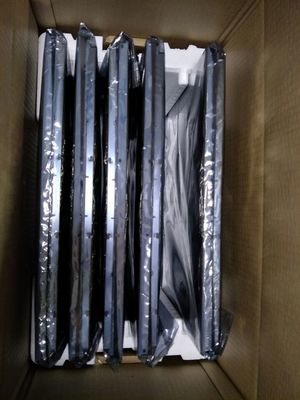

LG. LCD LM201U05-SLA3 Packing Details

Package Box : Amount Size (L×W×H) Weight
5 pcs / box - 530×307×453 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
