LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI

LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI

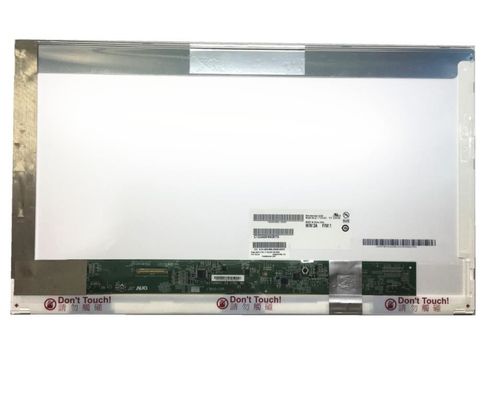

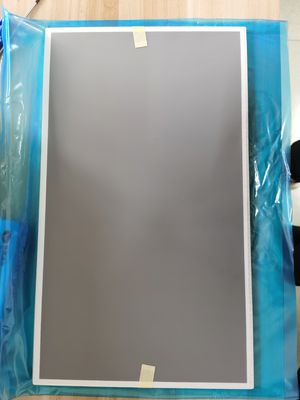

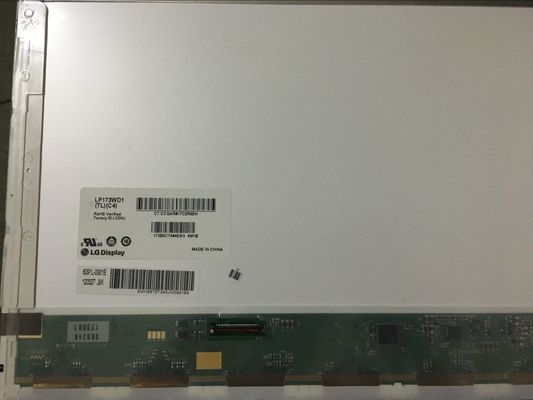

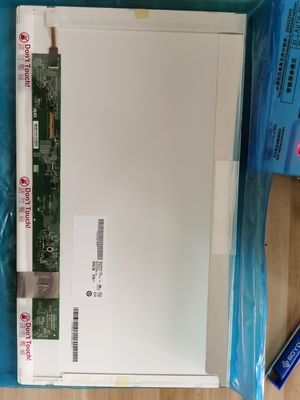

LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI

Large Image :  LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP173WD1-TLA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS
Contact Now

LP173WD1-TLA1 LG Display 17.3" 1600×900 220 cd/m² INDUSTRIAL LCD DISPLAY 106PPI

Description
MODEL NUMBER: LP173WD1-TLA1 BRAND: LG Display
SIZE: 17.3INCH BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: 1600(RGB)×900, HD+, 106PPI
VIEWING ANGLEG: 40/40/10/30 (Min.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

1600×900 NTSC Lcd Video Panel

,

106PPI Capacitive TFT Touch Panel

,

17.3" VGA Lcd Display Panels

LG Display LP173WD1-TLA1 Application Details

Basic Information :
Brand

LP173WD1-TLA1Model
Type
a-Si TFT-LCD , LCM
Used For

17.3 inchScreen Size
Alias
LP173WD1 (TL)(A1), LGD01CA
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LP173WD1-TLA1 Mechanical Details

Pixel Features :
Resolution
1600(RGB)×900, HD+
Dot Pitch(mm)
0.07956×0.23868 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.23868×0.23868 (H×V) [106PPI]
Mechanical Size :
Active Area(mm)
381.89(H) × 214.81(V)
Bezel Area(mm)
384.89(H) × 217.81(V)
Outline Dim.(mm)
398.1(H) × 232.8(V)
Depth(mm)
5.5/6.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (8-M2) on left, right bezel
Other Spec :
Weight
570g (Max.)
Treatment
Glare (Haze 0%)



LG Display LP173WD1-TLA1 Optical Details

Basic Information :
Luminance(cd/m²)
220 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
40/40/10/30 (Min.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
8 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
82% coverage
Adobe RGB
63% coverage
DCI-P3
62% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP173WD1-TLA1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
455/515mA (Typ./Max.)
Consumption
1.5/1.7W (Typ./Max.)
Signal Type :
LVDS (2 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-02
0.5 mm
40 pins
1 pcs
LVDS-40P2C6B-010A



LG Display LP173WD1-TLA1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
7.0/12.0/20.0V (Min./Typ./Max.)
Current Supply
-
Consumption
5.7/6.0W (Typ./Max.)



LG Display LP173WD1-TLA1 Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box - 490×390×298 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
