LP125WF3-SPB1 LG Display 12.5" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY 176PPI

LP125WF3-SPB1 LG Display 12.5" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY 176PPI
LP125WF3-SPB1 LG Display 12.5" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY 176PPI LP125WF3-SPB1 LG Display 12.5" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY 176PPI

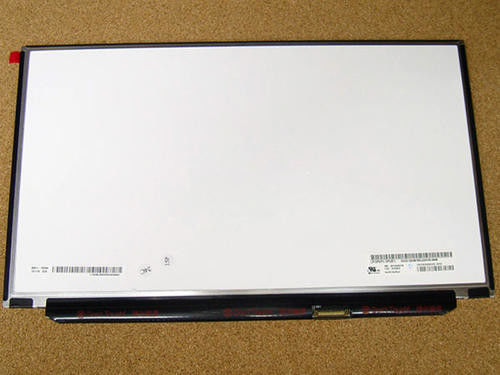

Large Image :  LP125WF3-SPB1 LG Display 12.5" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY 176PPI

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP125WF3-SPB1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS
Contact Now

LP125WF3-SPB1 LG Display 12.5" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY 176PPI

Description
MODEL NUMBER: LP125WF3-SPB1 BRAND: LG Display
SIZE: 12.5"inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 (FHD) 176PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

176PPI TFT Touch Panel

,

VGA Lcd Display Panels

LG Display LP125WF3-SPB1 Application Details

Basic Detail :
Manufacturer

LP125WF3-SPB1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name

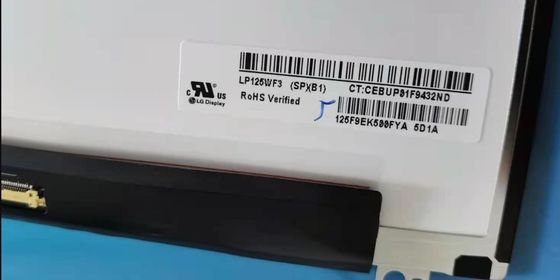

LP125WF3 (SP)(B1)
Panel Size
12.5 inch
Designed For






  •
  •
  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LP125WF3-SPB1 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.25/1.60 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
70% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP125WF3-SPB1 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.048×0.144 mm
Pixel Pitch(W×H)
0.144×0.144 mm [176PPI]
Physical Size :
Active Viewing
276.48(W)×155.52(H) mm
Overall Dim.
290.5(W)×170.7(H) mm
Bezel Opening
279.6(W)×158.94(H) mm
Overall Depth
2.7/2.85 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Fixation :
Face mounting holes (4 pcs) on right, up, down slugs
Other Detail :
Mass
230g (Max.)
Surface
Antiglare



LG Display LP125WF3-SPB1 Interface Detail

Signal Electrical :
Input Current
303/333mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
1.0/1.1W (Typ./Max.)
Signal Interface
eDP (2 Lanes)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



LG Display LP125WF3-SPB1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.0/12.0/21.0V (Min./Typ./Max.)
Input Current
325/335mA (Typ./Max.)
Consumption
2.8/2.85W (Typ./Max.)



LG Display LP125WF3-SPB1 Packing Details

Package Box : Amount Size (L×W×H) Weight
20 pcs / box - 478×365×244 mm
