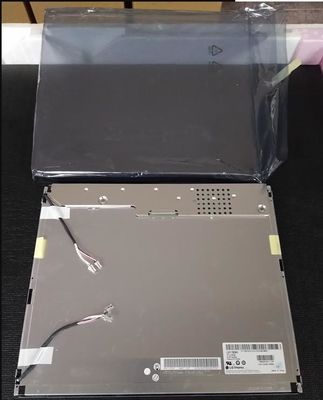

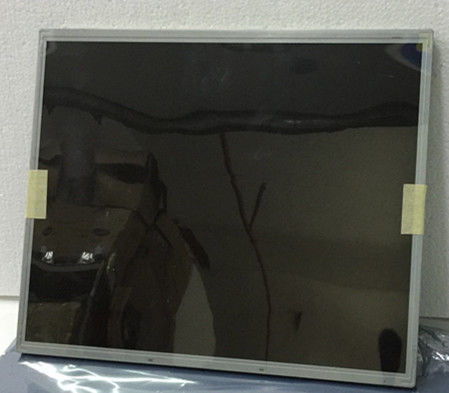

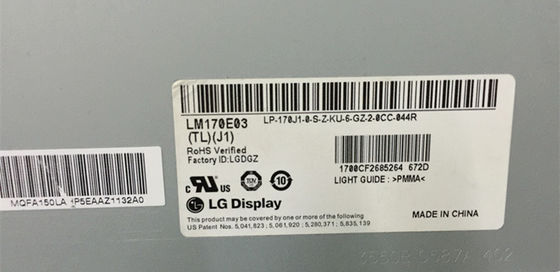

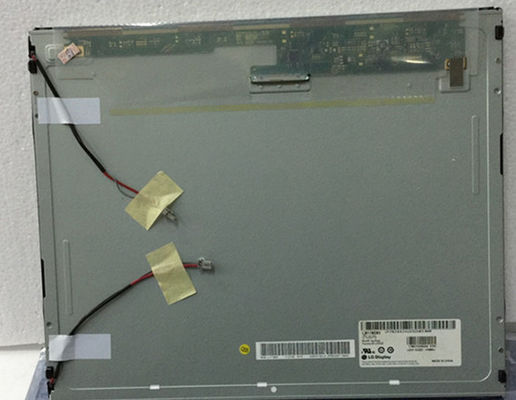

LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY
LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG. LCD
Certification: ISO9001
Model Number: LM170E03-TLG2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS
Contact Now

LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM170E03-TLG2 BRAND: LG. LCD
SIZE: 17.0INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×1024, SXGA, 96PPI
VIEWING ANGLEG: 80/80/75/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

NTSC Lcd Video Panel

,

96PPI TFT Touch Panel

,

280×1024 VGA Lcd Display Panels

LG. LCD LM170E03-TLG2 Application Details

Basic Detail :
Manufacturer

LM170E03-TLG2LM170E03-TLG2 LG. LCD 17.0" 1280×1024 300 cd/m² INDUSTRIAL LCD DISPLAY 0 3 CompatibleModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM170E03 (TL)(G2)
Panel Size
17.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG. LCD LM170E03-TLG2 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
1.2/3.8 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/75/85 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
96% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG. LCD LM170E03-TLG2 Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×1024, SXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.088×0.264 mm
Pixel Pitch(W×H)
0.264×0.264 mm [96PPI]
Physical Size :
Active Viewing
337.92(W)×270.336(H) mm
Overall Dim.
358.5(W)×296.5(H) mm
Bezel Opening
341.6(W)×274.0(H) mm
Overall Depth
16.0±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style
Normal bezel
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.60/1.80Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG. LCD LM170E03-TLG2 Interface Detail

Signal Electrical :
Input Current
790/910mA (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
3.95/4.55W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
UJU
IS100-L30B-C23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160C





LG. LCD LM170E03-TLG2 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
4 pcs
Position
Edge light type (Top and Bottom)
Exchange
-
Lamp Shape
Straight
Lamp Life
50K(Min.) (Hours)
Lamp Electrical :
Input Voltage
628/640/745V (Min./Typ./Max.)
Input Current
2.5/7.0/7.5mA (Min./Typ./Max.)
Frequency
40/60/70KHz (Min./Typ./Max.)
Turn-on Voltage
1000/1250V (Max.)(Ta=+25/0℃)
Consumption
17.9/19.7W (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
35001HS-02LD
3.5 mm
2 pins
4 pcs
BLL-2PINS-HL
Backlight Driver :
No



LG. LCD LM170E03-TLG2 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box - 420×333×431 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
