Product Details:
|

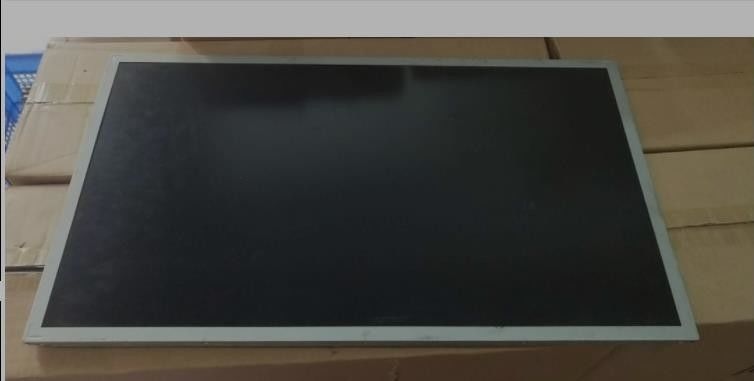

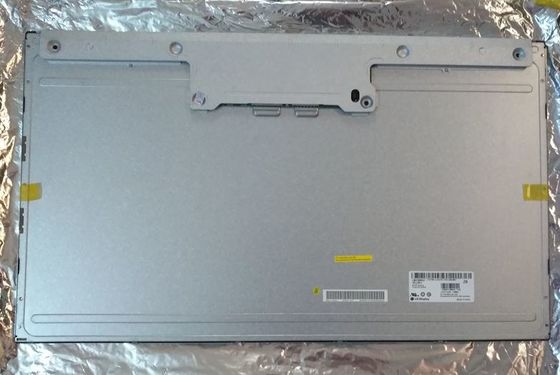

| MODEL NUMBER: | LM270WQ3-SLC1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 27.0" | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440, Quad-HD, 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 108PPI NTSC Lcd Video Panel,300cd/m2 Capacitive TFT Touch Panel,2560×1440 VGA Lcd Display Panels |
||
| Basic Information : | Brand | Model | LM270WQ3-SLC1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 27.0" | Alias | LM270WQ3 (SL)(C1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.0777×0.2331 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2331×0.2331 (H×V) [108PPI] | |
| Mechanical Size : | Active Area(mm) | 596.736(H) × 335.664(V) | Bezel Area(mm) | 602.0(H) × 340.4(V) |
| Outline Dim.(mm) | 630(H) × 368.2(V) | Depth(mm) | 13.3/18.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 3.35/3.52Kgs (Typ./Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AH-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 6 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 104% | sRGB | 100% coverage |
| Adobe RGB | 99% coverage | DCI-P3 | 94% coverage | |
| Rec.2020 | 77% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.05/1.37A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 12.6/16.38W (Typ./Max.) | |||||
| Signal Type : | LVDS (4 ch, 10-bit) | Signal Voltage | - | |||

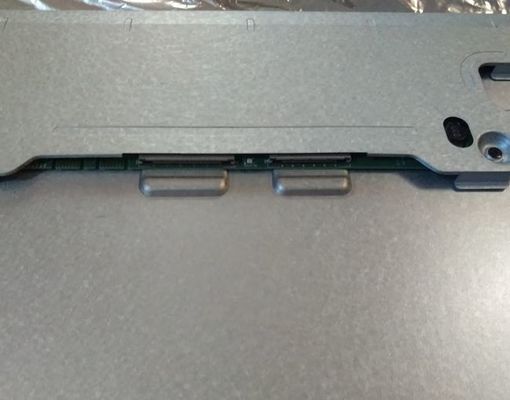

| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS050-C51B-C39-A | 1 pcs | 51 pins | 0.5 mm | ||
| UJU | IS050-C41B-C39-A | 1 pcs | 41 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | GB-r LED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 60/60V (Typ.)(Green/Blue) | Current Supply | 105/65mA (Typ.)(Green/Blue) | ||
| Consumption | 40.8/43.5W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | H401K-D12N-12B | 1 pcs | 12 pins | 2.0 mm | BLE-12PINS-CCAACCCCAACC | |
| Backlight Driver : | No | |||||

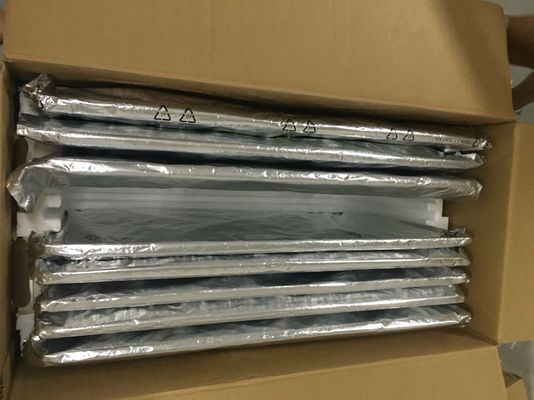

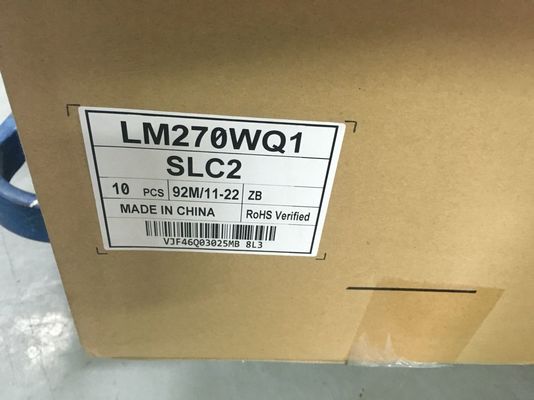

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | - | 355×700×430 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
