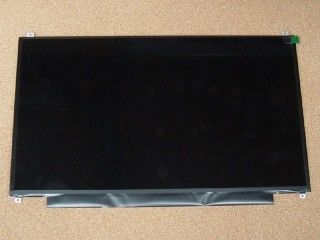

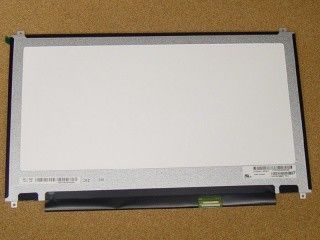

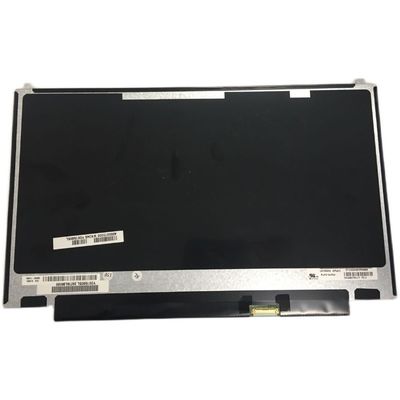

Product Details:
|
| MODEL NUMBER: | LP133WH2-SPA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 325CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768, WXGA, 118PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 1366×768 IPS Lcd Display Panels,118PPI Lcd Video Panel,325cd/m2 NEC TFT Display |
||
| Basic Information : | Brand | Model | LP133WH2-SPA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 13.3" | Alias | LP133WH2 (SP)(A1), LGD0410 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.0716×0.2148 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2148×0.2148 (H×V) [118PPI] | |
| Mechanical Size : | Active Area(mm) | 293.42(H) × 164.97(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 306.3(H) × 193.65(V) | Depth(mm) | 2.8/3.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ2.3, 2-Φ2.6) on up, down slugs | |||
| Other Spec : | Weight | 275g (Max.) | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 325 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 212/273mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.7/0.9W (Typ./Max.) | |||||
| Signal Type : | eDP (1 Lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | HD2S030HA1 | 1 pcs | 30 pins | 0.5 mm | EDP-30P1L-030A | |
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4 strings | Life Time | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/20.0V (Min./Typ./Max.) | Current Supply | 258/267mA (Typ./Max.) | ||
| Consumption | 3.1/3.2W (Typ./Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 478×365×244 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
