17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB

17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB
17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB 17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB 17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB 17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB

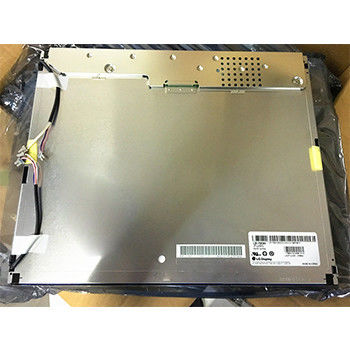

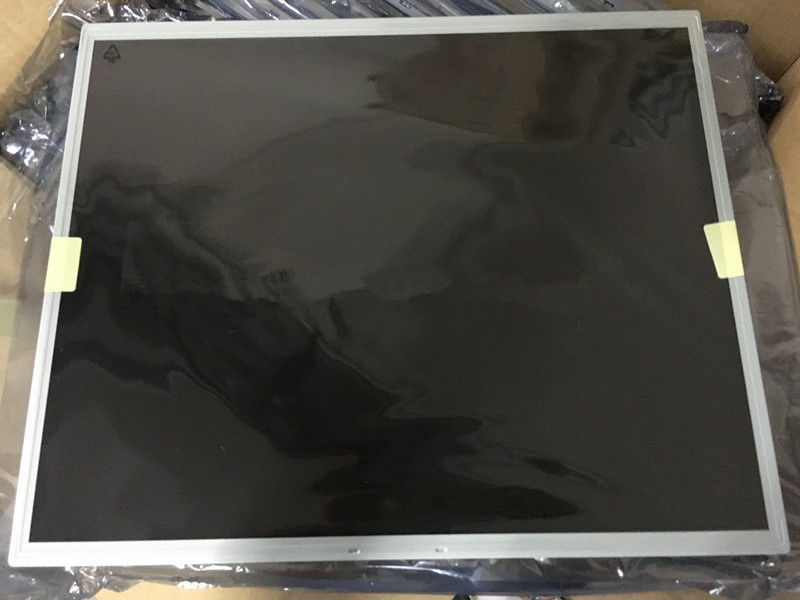

Large Image :  17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LM170E03-TLHB
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS

17.0" 96PPI 1280x1024 Square Tft Display 250cd/M2 9.66W LM170E03-TLHB

Description
MODEL NUMBER: LM170E03-TLHB BRAND: LG Display
SIZE: 17.0"inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×1024 (SXGA) 96PPI
VIEWING ANGLEG: 85/85/75/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

96PPI Square Tft Display

,

1280x1024 Square Tft Display

,

9.66W Industrial LCD Panel

LG Display LM170E03-TLHB Application Features

Basic Information : Brand Name Model Name  3 Compatible Type Model Alias
  LM170E03-TLHB a-Si TFT-LCD , LCM LM170E03 (TL)(HB)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LM170E03-TLHB Mechanical Features

Screen Size : 17.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×1024, SXGA RGB Vertical Stripe 0.088×0.264 mm 0.264×0.264 mm [96PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
337.92×270.336 mm 341.6×274.0 mm 358.5×296.5 mm 16.0±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 5:4 Landscape type Normal bezel
Other Spec : Mass Panel Cover Surface Treatment
1.89/1.99Kgs (Typ./Max.) - Antiglare, Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel



LG Display LM170E03-TLHB Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 85/85/75/85 (Typ.)(CR≥10) 1.2/3.8 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
71% 96% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
74% 53% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.33 (Max.)(9 points)



LG Display LM170E03-TLHB Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
CCFL Edge light type (Top and Bottom) 50K(Min.) 2 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
575/585/720V (Min./Typ./Max.) 2.5/7.5/8.0mA (Min./Typ./Max.) 8.78/9.66W (Typ./Max.)
Operating Frequency Startup Voltage
40/60/70KHz (Min./Typ./Max.) 1000/1250V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
YEONHO 35001HS-02LD 2 pcs 2 pins 3.5 mm BLL-2PINS-HL



LG Display LM170E03-TLHB Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
5.0V (Typ.) 790/910mA (Typ./Max.) 3.95/4.55W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (2 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
UJU IS100-L30B-C23 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-160C



LG Display LM170E03-TLHB Packing Features

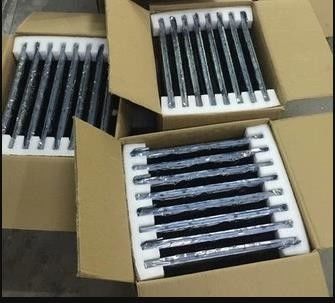

Package Box : Amount Weight Size (L×W×H)
10 pcs / box - 420×333×431 mm (L×W×H)

 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
