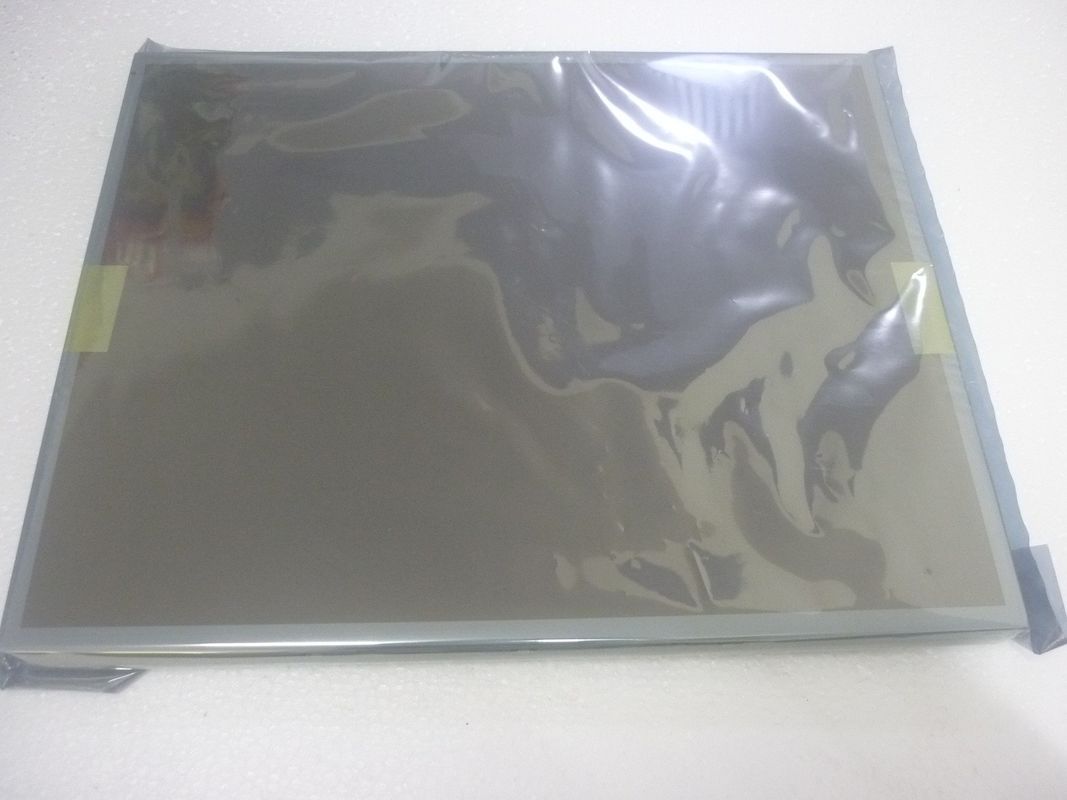

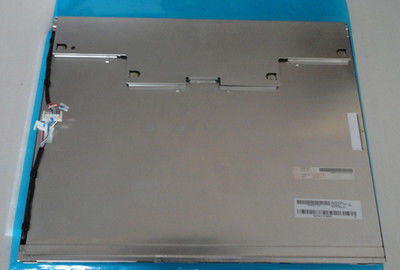

Product Details:
|
| MODEL NUMBER: | LM201U05-SLA1 | BRAND: | LG.LCD |
|---|---|---|---|
| SIZE: | 20.1INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×1200, UXGA, 99PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 1600×1200 Industrial LCD Panel,300cd/m2 Industrial LCD Panel,99PPI Tft Lcd Screen |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LM201U05-SLA1 | a-Si TFT-LCD , LCM | LM201U05 (SL)(A1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 20.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.085×0.255 mm | 0.255×0.255 mm [99PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 408×306 mm | 413.0×311.0 mm | 432×331.5 mm | 17.4/25.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.20Kgs (Typ.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 7/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 94% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.40/0.60A (Typ./Max.) | 18.0V (Typ.) | 7.2/10.8W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS100-L30R-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-010A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 6 pcs | 45K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.0/7.0/8.0mA (Min./Typ./Max.) | 670/700/825V (Min./Typ./Max.) | 29.4/32.3W (Typ./Max.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1150/1450V (Max.)(Ta=+25/0℃) | 40/50/80KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 2 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| JST | BHR-05VS-1 | 2 pcs | 4.0 mm | 5 pins | BLL-5PINS-HHNLL | |

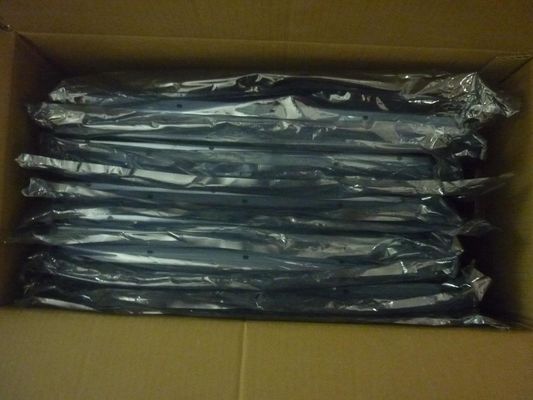

| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 5 pcs / box | - | 530×307×453 mm (L×W×H) |
