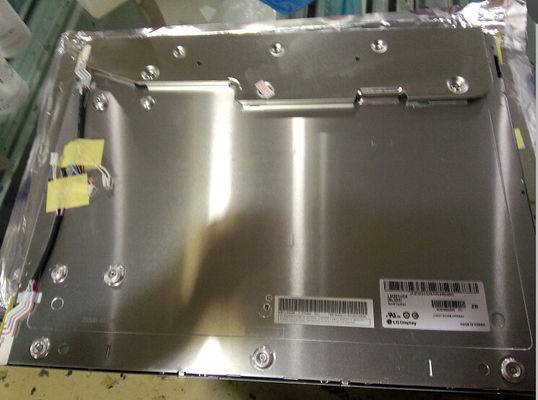

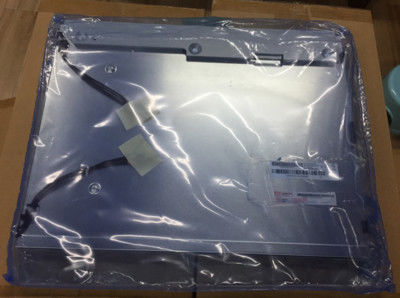

Product Details:
|
| MODEL NUMBER: | LM201U04-SL02 | BRAND: | LG. LCD |
|---|---|---|---|
| SIZE: | 20.1INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×1200, UXGA, 99PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 1600x1200 Tft Lcd Screen,20.1" Tft Lcd Screen,99PPI Square Tft Display |
||
| Basic Info : | Panel Brand | Panel Model | LM201U04-SL02 | |
|---|---|---|---|---|
| Diagonal Size | 20.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM201U04 (SL)(02) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 1600(RGB)×1200 [UXGA] | Dot Pitch | 0.085×0.255 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.255×0.255 mm (H×V) [99PPI] | |
| Mechanical Size : | Display Area | 408×306 mm (H×V) | Bezel Area | 413.0×311.0 mm (H×V) |
| Outline Dim. | 432×331.5 mm (H×V) | Outline Depth | 17.4/25.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | Normal bezel | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 3.20Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 7/9 (Typ.)(Tr/Td); 12 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.39 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 45K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 680/700/825V (Min./Typ./Max.) | Current Input | 3.0/7.0/7.5mA (Min./Typ./Max.) | ||
| Frequency | 40/50/80KHz (Min./Typ./Max.) | Kick-off Voltage | 1150/1450V (Max.)(Ta=+25/0℃) | |||
| Consumption | 29.4/32.3W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
| JST | BHR-05VS-1 | 4.0 mm | 5 pins | 2 pcs | BLL-5PINS-HHNLL | |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 20.0V (Typ.) | Current Input | 280/360mA (Typ./Max.) | ||
| Consumption | 5.58/7.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SRL-HF11 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-030A | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 5 pcs / box | - | 530×307×453 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
