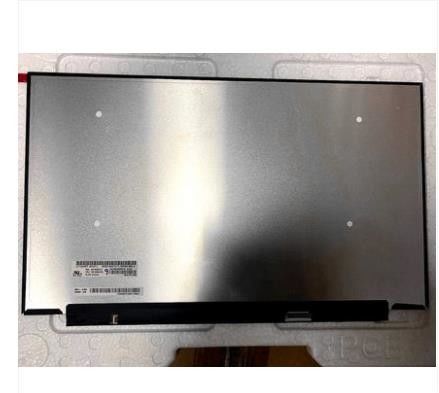

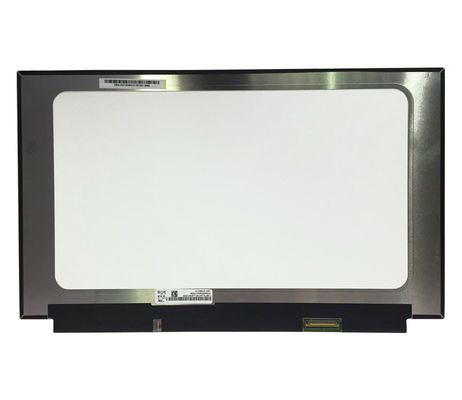

141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1

141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1
141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1 141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1

Large Image :  141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP156WFF-SPF1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 120PCS
Contact Now

141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1

Description
MODEL NUMBER: LP156WFF-SPF1 BRAND: LG Display
SIZE: 15.6 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 141PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

141PPI LCD Industrial Panel

,

300cd/m2 LCD Industrial Panel

,

15.6" TFT Touch Panel

LG Display LP156WFF-SPF1 Application Details

Basic Information :
Brand

LP156WFF-SPF1Model
Type
a-Si TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
LP156WFF (SP)(F1), LGD6D06
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.0G (9.8 m/s²)Vibration



LG Display LP156WFF-SPF1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.1(H) × 193.59(V)
Bezel Area(mm)
-
Outline Dim.(mm)
350.66(H) × 214.75(V)
Depth(mm)
2.6 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
310g (Max.)
Treatment
Antiglare



LG Display LP156WFF-SPF1 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.67 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
98% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP156WFF-SPF1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
151/167mA (Typ./Max.)
Consumption
0.5/0.55W (Typ./Max.)
Signal Type :
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



LG Display LP156WFF-SPF1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5/12/21V (Min./Typ./Max.)
Current Supply
278/283mA (Typ./Max.)
Consumption
3.34/3.4W (Typ./Max.)



LG Display LP156WFF-SPF1 Packing Details

Package Box : Quantity Weight Box Size
35 pcs / box - 427×327×328 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1 0
