Product Details:
|

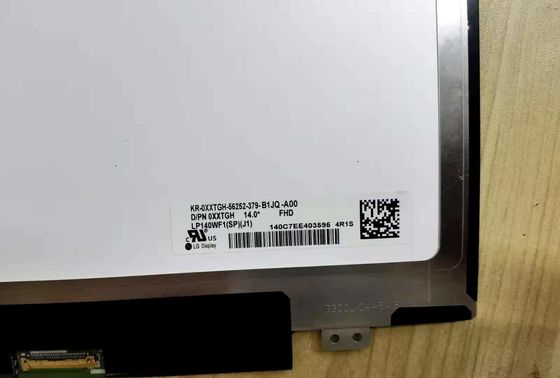

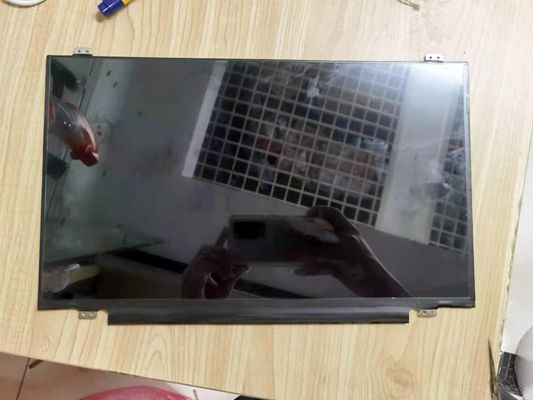

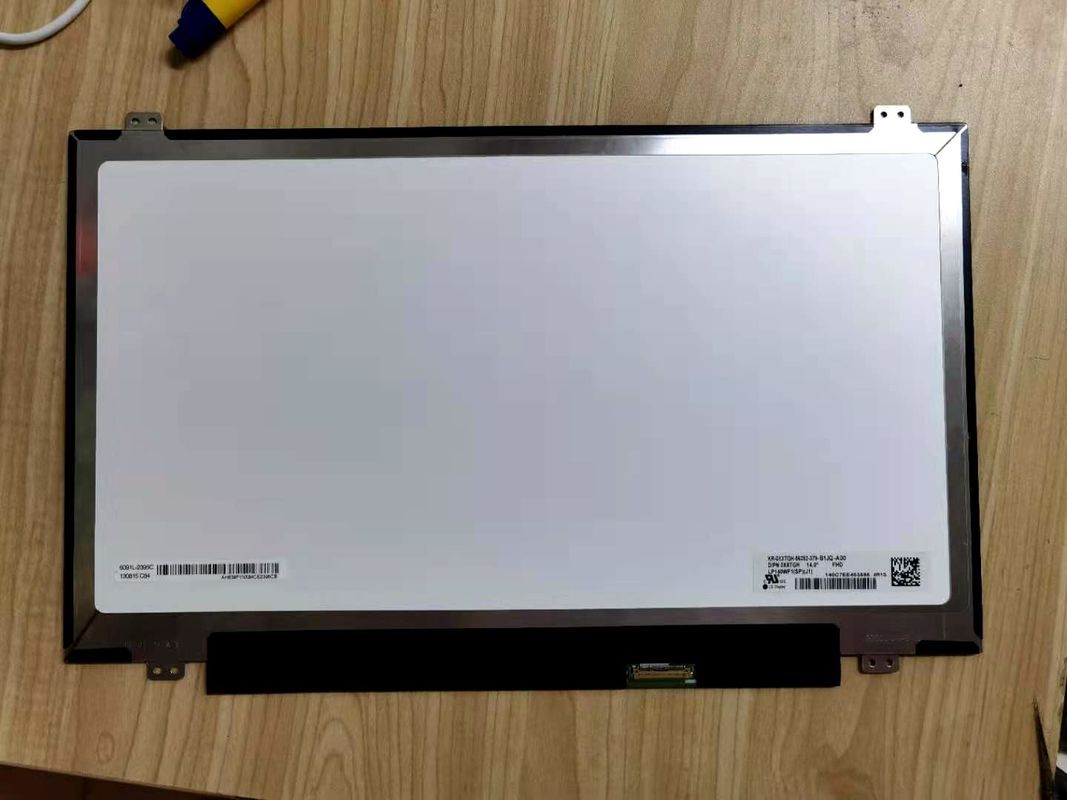

| MODEL NUMBER: | LP140WF1-SPJ1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 14.0 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 157PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Min.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 157PPI TFT LCD Panel,14.0" TFT LCD Panel,ISO9001 Industrial Lcd Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LP140WF1-SPJ1 | a-Si TFT-LCD , LCM | LP140WF1 (SP)(J1), LGD0406 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 14.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0537×0.1611 mm | 0.1611×0.1611 mm [157PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 309.31×173.99 mm | 312.5×177.1 mm | 320.4×205.1 mm | 2.8/3.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 290/300g (Typ./Max.) | - | Glare (Haze 0%) | ||
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Min.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 91% | 70% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.40/1.60 (Typ./Max.)(13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 7.0/12.0/21.0V (Min./Typ./Max.) | 335/345mA (Typ./Max.) | 4.0/4.1W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 320/365mA (Typ./Max.) | 1.0/1.2W (Typ./Max.)) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (2 Lanes) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | KN38-30S-0.5H | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | - | 468×355×270 mm (L×W×H) |
