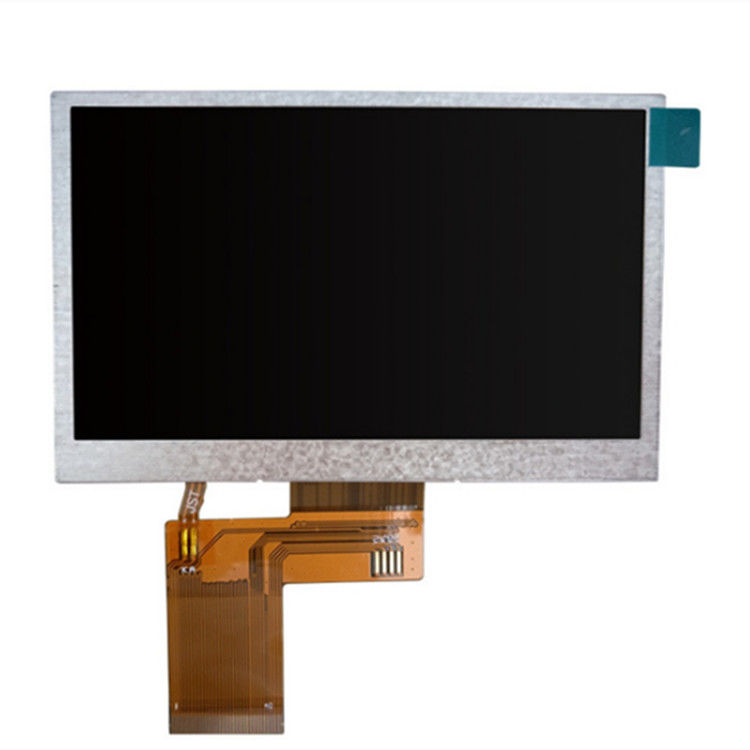

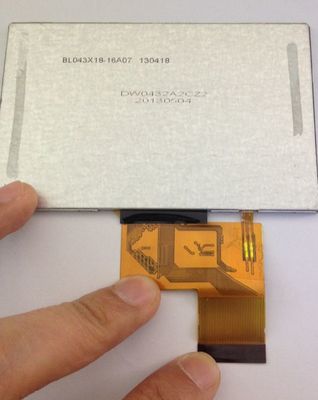

Product Details:
|
| MODEL NUMBER: | LB043WQ1-TD01 | BRAND: | LG. LCD |
|---|---|---|---|
| SIZE: | 4.3 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 480×272(RGB) (WQVGA) 128PPI |
| VIEWING ANGLEG: | 70/70/65/55 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | 480x272 RGB Lcd Video Panel,350cd/m2 Lcd Video Panel,128PPI Square LCD Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LB043WQ1-TD01 | a-Si TFT-LCD , LCM | LB043WQ1 (TD)(01) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 70/70/65/55 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6208K | 16.7M (8-bit) | X:0.317; Y:0.340 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.40/1.60 (Typ./Max.)(9 points) | ||
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480×272(RGB) [WQVGA] | RGB Horizontal Stripe | 0.198×0.198 [128PPI] | 0.198×0.066 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.04(H) × 53.856(V) | 98.24(H) × 57.06(V) | 105.5(H) × 67.2(V) | 4.0±0.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| - | - | - | 4-wire Resistive Touch, F/G | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 70.0g (Typ.) | - | Antiglare | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10S1P | 1 string | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 32.5V (Typ.) | 20mA (Typ.) | 650mW (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 2.5/3.3V (Typ.)(VDD) | - | 135/155mW (Typ./Max.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 45 pins | 1 pcs | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 63 pcs / box | - | 475×348×175 mm (L×W×H) |
