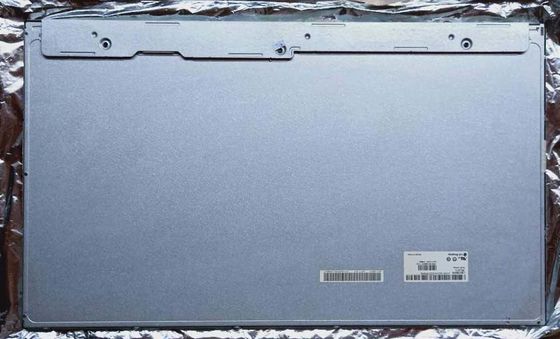

Product Details:
|
| MODEL NUMBER: | LB270WR1-SPA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 800CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160, UHD, 163PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 27.0" Tft Lcd Screen,163PPI Tft Lcd Screen,800cd/m2 Lcd Video Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LB270WR1-SPA1 | a-Si TFT-LCD , LCM | LB270WR1 (SP)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 800 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 82% | 100% | 81% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 85% | 61% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | ||
| Panel Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.15525×0.15525 [163PPI] | 0.05175×0.15525 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 596.16(H) × 335.34(V) | - | 649.84(H) × 387.13(V) | 12.5/17.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Rear mounting holes (15-M3) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.85/4.05Kgs (Typ./Max.) | With Normal Cover Glass | Anti Fingerprint, Hard coating, Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top and Bottom) | 18S4P×2CN | 4 strings × 2CN | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 54.7±3.6V | 135/140mA (Typ./Max.) | 59.1/63.0W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHJH(HF) | 1.0 mm | 6 pins | 2 pcs | BLE-6PINS-CCAACC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 660/825mA (Typ./Max.) | 6.6/8.25W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | EDP-30P4L-050A | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 14 pcs / box | - | 780×542×455 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
