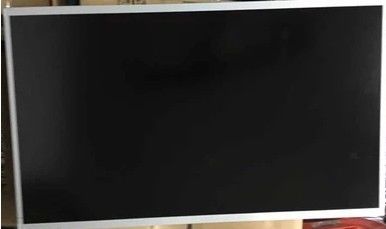

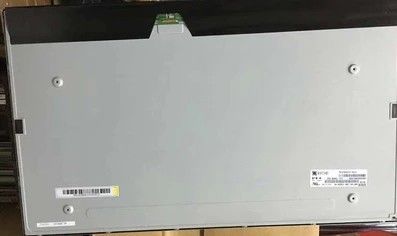

Product Details:
|

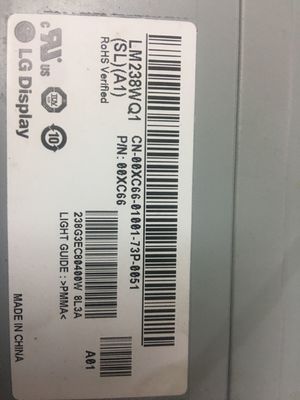

| MODEL NUMBER: | LM238WQ1-SLA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 23.8 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440, Quad-HD, 123PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 23.8" Industrial TFT Display,2560×1440 Industrial TFT Display,300cd/m2 Square Tft Screen |
||
| Basic Information : | Brand | Model | LM238WQ1-SLA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 23.8" | Alias | LM238WQ1 (SL)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.06845×0.20535 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.20535×0.20535 (H×V) [123PPI] | |
| Mechanical Size : | Active Area(mm) | 525.7(H) × 295.7(V) | Bezel Area(mm) | 530.2(H) × 299.6(V) |
| Outline Dim.(mm) | 543(H) × 317.4(V) | Depth(mm) | 8.4/11.7 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 2.31Kgs (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 415/519mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.15/5.19W (Typ./Max.) | |||||
| Signal Type : | LVDS (4 ch, 10-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS050-C51B-C39-A | 1 pcs | 51 pins | 0.5 mm | ||
| UJU | IS050-C41B-C39-A | 1 pcs | 41 pins | 0.5 mm | ||
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 18S3P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 52.4±3.6V | Current Supply | 90/95mA (Typ./Max.) | ||
| Consumption | 14.1/15.1W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WR-H06D | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 12 pcs / box | - | 625×360×382 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
