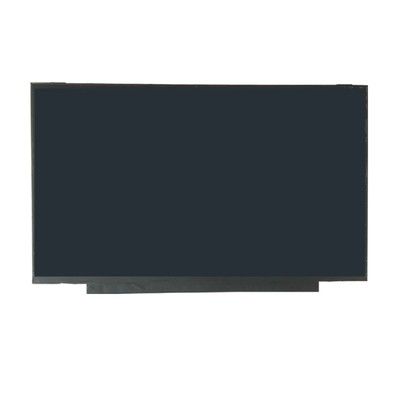

LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY

LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY
LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY

Large Image :  LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LB156WF1-SPA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

LB156WF1-SPA1 LG Display 15.6" 19201080 400cd/m2 INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LB156WF1-SPA1 BRAND: LG Display
SIZE: 15.6 Inch BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 141PPI
VIEWING ANGLEG: 80/80/80/80 (Min.)(CR≥10 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels 15.6"

,

141PPI Lcd Video Panel

,

400cd/m2 Antiglare NEC TFT Display

LG Display LB156WF1-SPA1 Application Details

Basic Information :
Brand

LB156WF1-SPA1Model
Type
a-Si TFT-LCD , LCM
Used For







  •
  •
  •
  •
Screen Size
15.6 inch
Alias
LP156WF1 (SP)(A1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.0G (9.8 m/s²)Vibration



LG Display LB156WF1-SPA1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
346.20(H) × 195.60(V)
Outline Dim.(mm)
363.8(H) × 215.9(V)
Depth(mm)
8.85/13.35 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
-
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
706/740g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LB156WF1-SPA1 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
76%
sRGB
95% coverage
Adobe RGB
76% coverage
DCI-P3
79% coverage
Rec.2020
57% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LB156WF1-SPA1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
330/410mA (Typ./Max.)
Consumption
1.09/1.35W (Typ./Max.)
Signal Type :
eDP (2 Lanes), HBR1 (2.7G/lane)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT05Q-30S-H10-MN
0.5 mm
30 pins
1 pcs



LG Display LB156WF1-SPA1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±0.5V
Current Supply
650/715mA (Typ./Max.)
Consumption
7.80/8.58W (Typ./Max.)



LG Display LB156WF1-SPA1 Packing Details

Package Box : Quantity Weight Box Size
14 pcs / box - 478×365×288 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
