Product Details:
|

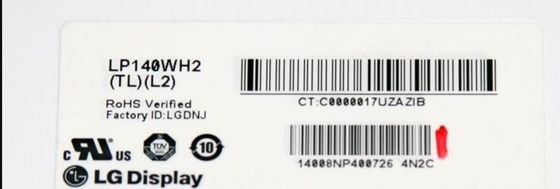

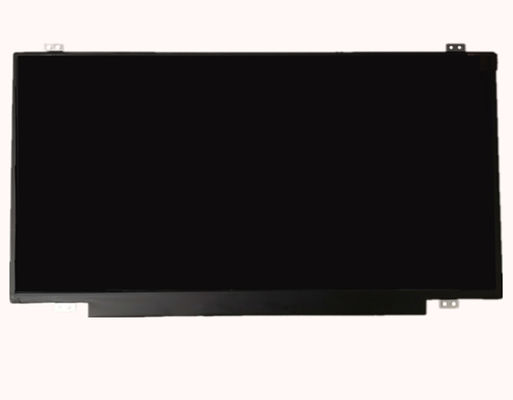

| MODEL NUMBER: | LP140WH2-TLL2 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 14.0 Inch | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 (WXGA) 112PPI |
| VIEWING ANGLEG: | 40/40/10/30 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 1366×768 IPS Lcd Display Panels,112PPI Lcd Video Panel,14.0" Antiglare NEC TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LP140WH2-TLL2 | a-Si TFT-LCD , LCM | LP140WH2 (TL)(L2) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 14.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0755×0.2265 mm | 0.2265×0.2265 mm [112PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 309.399×173.952 mm | 313.40×177.45 mm | 322.3×204.6 mm | 3.3/3.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Flat (PCBA Flat, T3.4~4.0mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 320g (Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 40/40/10/30 (Min.)(CR≥10) | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 46% | 33% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.40/1.60 (Typ./Max.)(13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 12K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 7.0/19.0/21.0V (Min./Typ./Max.) | 130/150mA (Typ./Max.) | 2.5/2.9W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 0.41/0.47A (Typ./Max.) | 1.0/1.2W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS050-L40B-C10 | 1 pcs | 40 pins | 0.5 mm | LVDS-40P1C6B-050A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | - | 473×364×338 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
