Product Details:
|

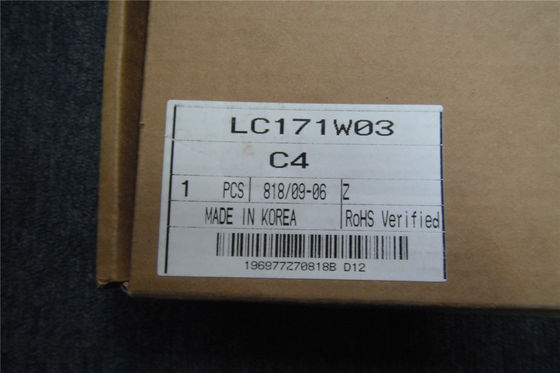

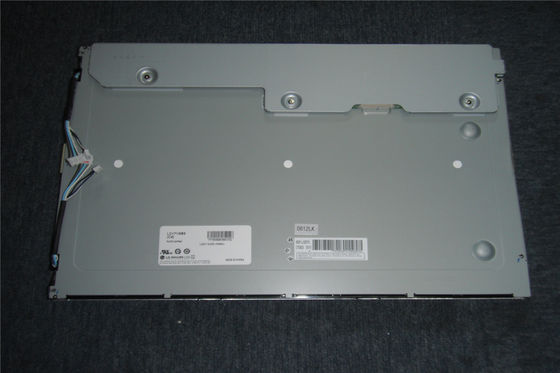

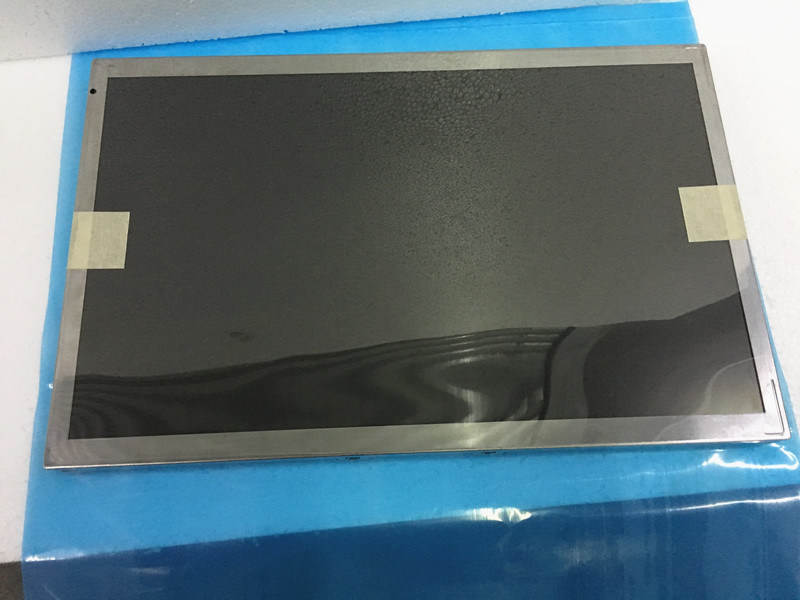

| MODEL NUMBER: | LC171W03-C4 | BRAND: | LG. LCD |
|---|---|---|---|
| SIZE: | 17.1INCH | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×768 [WXGA] 87PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 87PPI Lcd Display Panels,1280×768 NTSC Lcd Video Panel,450cd/m2 Antiglare NEC TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LC171W03-C4 1 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 17.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LC171W03 (C4) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1280(RGB)×768 [WXGA] | Dot Pitch | 0.097×0.291 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.291×0.291 mm (H×V) [87PPI] | |
| Mechanical Size : | Display Area | 372.48×223.488 mm (H×V) | Bezel Area | 376.6×227.6 mm (H×V) |
| Outline Dim. | 400×258 mm (H×V) | Outline Depth | 22.0 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.50Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 12/13 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.289; Wy:0.303 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 8549K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 93% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 660/670/770V (Min./Typ./Max.) | Current Input | 3.0/7.0/7.5mA (Min./Typ./Max.) | ||
| Frequency | 45/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | 1030/1340V (Max.)(Ta=+25/0℃) | |||
| Consumption | 28.2/31.1W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | PHR-3 | 2.0 mm | 3 pins | 2 pcs | BLL-3PINS-LLL | |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HHH | |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 240mA (Typ.) | ||
| Consumption | 2.9W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT123-20P-H16-LSS | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-030A | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 5 pcs / box | - | 490×277×322 mm |
