LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY
LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY

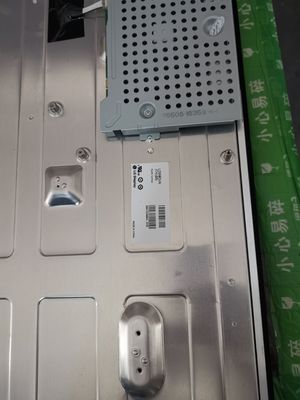

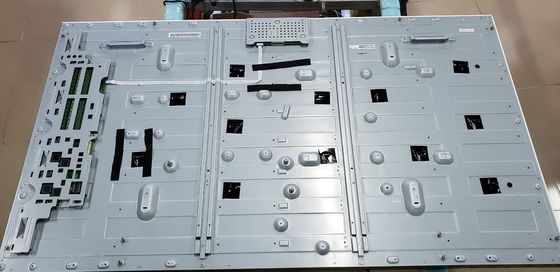

Large Image :  LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LD550EUN-UHB1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LD550EUN-UHB1 BRAND: LG Display
SIZE: 55 Inch BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 40PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels

,

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

LG Display LD550EUN-UHB1 Application Features

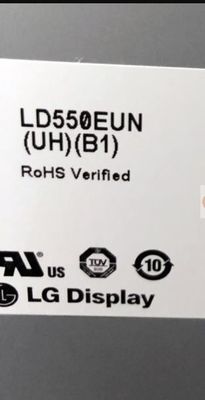

Basic Information : Brand Model Type Model Alias
  LD550EUN-UHB1 a-Si TFT-LCD , LCM LD550EUN (UH)(B1)
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  0 ~ 50 °C -20 ~ 60 °C



LG Display LD550EUN-UHB1 Mechanical Features

Panel Size : 55 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
1920(RGB)×1080, FHD RGB Vertical Stripe 0.210×0.630 mm 0.630×0.630 mm [40PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
1209.6×680.4 mm 1215.6×686.4 mm 1227.4×698.2 mm 19.0/32.2 (Typ./Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Videowall Seam
Flat Rectangle 16:9 (W : H) Landscape / Portrait 17.8 mm (Active to Active)
Other Features : Panel Cover Weight Surface
- 16.5/17.0Kgs (Typ./Max.) Antiglare (Haze 10%), Hard coating (3H)



LG Display LD550EUN-UHB1 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
500 cd/m² (Typ.) IPS, Normally Black, Transmissive 1300:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
89/89/89/89 (Min.)(CR≥10) Symmetry 8 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
9972K 16.7M/1.07B (8-bit / 8-bit + Dithering) X:0.279; Y:0.292
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
71% 98% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
74% 53% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.54 (Max.)(9 points)



LG Display LD550EUN-UHB1 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
755/982mA (Typ./Max.) 12.0V (Typ.) 9.1/11.8W (Typ./Max.)
Interface Features : Position Type Interface
- Connector LVDS (2 ch, 8/10-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
JAE FI-RE51S-HF 1 pcs 0.5 mm 51 pins



LG Display LD550EUN-UHB1 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type - - 60K(Typ.) -
Interface Features : Position Type WLED Driver
- Connector With LED Driver
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
YEONHO 20022WR-H14B2 1 pcs 2.0 mm 14 pins
Driver Electrical : Current Input Voltage Input Consumption
4.4/4.8A (Typ./Max.) 24.0±2.4V 104.7/115.3W (Typ./Max.)

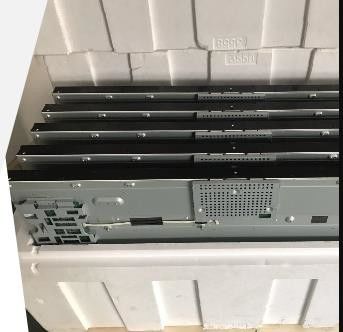

LG Display LD550EUN-UHB1 Packing Features

Package Carton : Amount Weight Carton Size
18 pcs / box - 1440×1140×950 mm (L×W×H)





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY 0LD550EUN-UHB1 LG Display 55" 1920(RGB)×1080 500 cd/m²  INDUSTRIAL LCD DISPLAY 1
