Product Details:
|

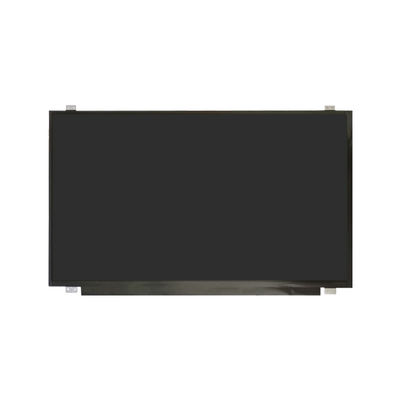

| MODEL NUMBER: | LP140WF6-SPD4 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 14.0 Inch | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 157PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | IPS Lcd Display Panels,NTSC Lcd Video Panel,Antiglare NEC TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LP140WF6-SPD4 | a-Si TFT-LCD , LCM | LP140WF6 (SP)(D4) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 14.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0537×0.1611 mm | 0.1611×0.1611 mm [157PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 309.31×173.99 mm | 312.4×177.05 mm | 320.4×205.1 mm | 2.8/3.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 290/300g (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Min.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| Luminance Variation : | 1.40/1.60 (Max.)(5/13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (2 Lanes) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | KN38B-30S-0.5H | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020Q | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 12K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 225/235mA (Typ./Max.) | 5.5/12.0/21.0V (Min./Typ./Max.) | 2.7/2.8W (Typ./Max.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 30 pcs / box | - | 478×365×288 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
