LD750EQD-FJM1 LG Semicon 75" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY

LD750EQD-FJM1 LG Semicon 75" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY
LD750EQD-FJM1 LG Semicon 75" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY LD750EQD-FJM1 LG Semicon 75" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY

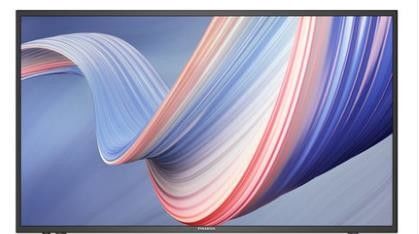

Large Image :  LD750EQD-FJM1 LG Semicon 75" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG Semicon
Certification: ISO9001
Model Number: LD750EQD-FJM1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

LD750EQD-FJM1 LG Semicon 75" 3840(RGB)×2160 500 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LD750EQD-FJM1 BRAND: LG Semicon
SIZE: 75 Inch BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 3840(RGB)×2160, UHD, 59PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

IPS Lcd Display Panels

,

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

LG Display LD750EQD-FJM1 Application Details

Basic Information :
Brand

LD750EQD-FJM1Model
Type
a-Si TFT-LCD , LCM
Used For

75 inchScreen Size
Alias
LD750EQD (FJ)(M1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LD750EQD-FJM1 Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2160, UHD
Dot Pitch(mm)
0.1432×0.4296 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.4296×0.4296 (H×V) [59PPI]
Mechanical Size :
Active Area(mm)
1649.66(H) × 927.936(V)
Bezel Area(mm)
1651.6(H) × 930.0(V)
Outline Dim.(mm)
1675.2(H) × 953.6(V)
Depth(mm)
25.5 (Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape / Portrait
Other Spec :
Weight
32.6/36.0Kgs (Typ./Max.)
Treatment
Antiglare (Haze 3%), Hard coating (2H)



LG Display LD750EQD-FJM1 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
6 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.279; Wy:0.292
Display Colors
16.7M/1.07B (8-bit / 10-bit)
Color Temperature
9972K
White Uniformity
1.67 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
97% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LD750EQD-FJM1 Interface Detail

Signal Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
1.1/1.4A (Typ./Max.)
Consumption
13.2/17.1W (Typ./Max.)
Signal Type :
V-by-One 16 lane
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-RXE51S-HF
0.5 mm
51 pins
1 pcs

JAE
FI-RXE41S-HF
0.5 mm
41 pins
1 pcs

YEONHO
20037WR-H05
2.0 mm
5 pins
1 pcs



LG Display LD750EQD-FJM1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
YEONHO
20022WR-14B2
2.0 mm
14 pins
1 pcs

YEONHO
20022WR-H12B2
2.0 mm
12 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
24.0±2.4V
Current Supply
8.1/8.7A (Typ./Max.)
Consumption
193.7/209.9W (Typ./Max.)



LG Display LD750EQD-FJM1 Packing Details

Package Box : Quantity Weight Box Size
8 pcs / box - 1910×760×1275 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
