Product Details:
|
| MODEL NUMBER: | LD550DUN-THA3 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 700CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 40PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED TTL Industrial Lcd Display,CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LD550DUN-THA3 | a-Si TFT-LCD , LCM | LD550DUN (TH)(A3) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 55 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.210×0.630 mm | 0.630×0.630 mm [40PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 1209.6×680.4 mm | - | 1211.4×682.2 mm | 53.3 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Videowall Seam |

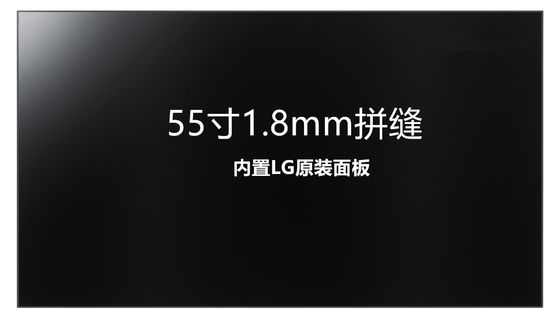

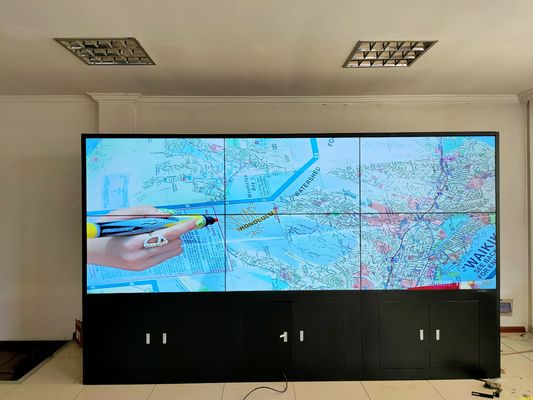

| Flat Rectangle | 16:9 (W : H) | Landscape / Portrait | 1.8 mm (Active to Active) | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 13.8/15.2Kgs (Typ./Max.) | Hard coating (2H), Reflection 2.0% (Max.) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | S-IPS, Normally Black, Transmissive | 1400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9972K | 1.06B (8-bit + Dithering) | X:0.279; Y:0.292 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 99% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.11/1.25 (Typ./Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.83/1.08A (Typ./Max.) | 12.0V (Typ.) | 10.0/13.0W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 10-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Direct light type | - | - | 50K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | 20022WR-14B2 | 1 pcs | 2.0 mm | 14 pins | ||
| YEONHO | 20022WR-12B2 | 1 pcs | 2.0 mm | 12 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 8.4/9.43A (Typ./Max.) | 24.0±2.4V | 201.6/226.32W (Typ./Max.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 10 pcs / box | - | 1440×1140×950 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
