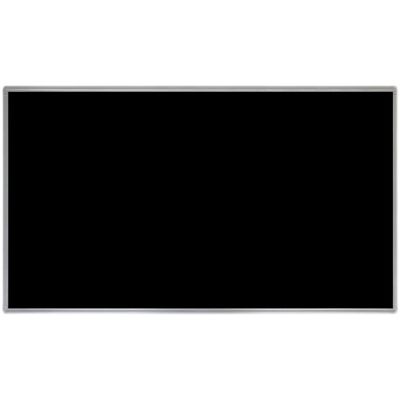

Product Details:
|
| MODEL NUMBER: | LD980DQD-FGM1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 98 Inch | BRIGHTNESS: | 500 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 45PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 55 °C |
| Highlight: | WLED TTL Industrial Lcd Display,CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LD980DQD-FGM1 | a-Si TFT-LCD , LCM | LD980DQD (FG)(M1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 55 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 89/89/89/89 (Min.)(CR≥10) | 8 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | S-IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9966K | 1.06B (8-bit + Dithering) | X:0.281; Y:0.288 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 97% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 98" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.5622×0.5622 [45PPI] | 0.1874×0.5622 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 2158.85(H) × 1214.35(V) | 2162.0(H) × 1217.0(V) | 2187.8(H) × 1242.8(V) | 38.0/68.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 56.0/59.0Kgs (Typ./Max.) | - | Antiglare (Haze 1%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Direct light type | - | - | 50K(Typ.) | - | |

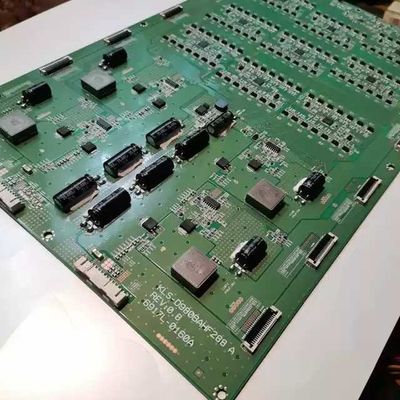

| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 20022WR-H14B2 | 2.0 mm | 14 pins | 2 pcs | ||
| YEONHO | 20022WR-H12B2 | 2.0 mm | 12 pins | 2 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 24.0±2.4V | 18.13/22.24A (Typ.) | 435.1/533.85W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 1.51/1.96A (Typ./Max.) | 18.1/23.5W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | V-by-One 16 lane | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
| JAE | FI-RE41S-HF | 0.5 mm | 41 pins | 1 pcs | ||
| YEONHO | 20037WR-H05 | 2.0 mm | 5 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
