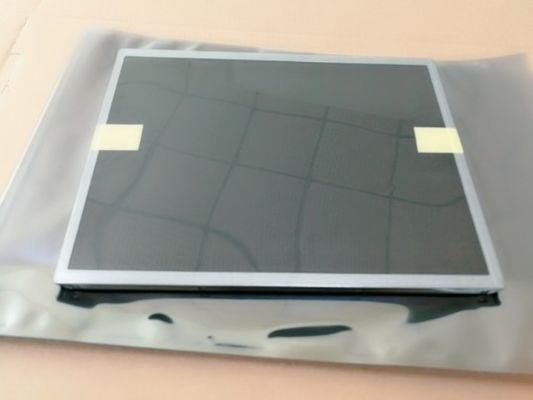

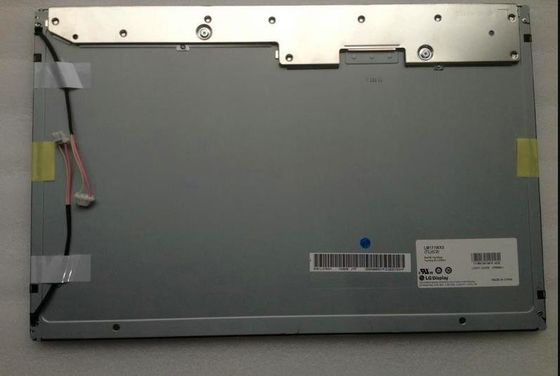

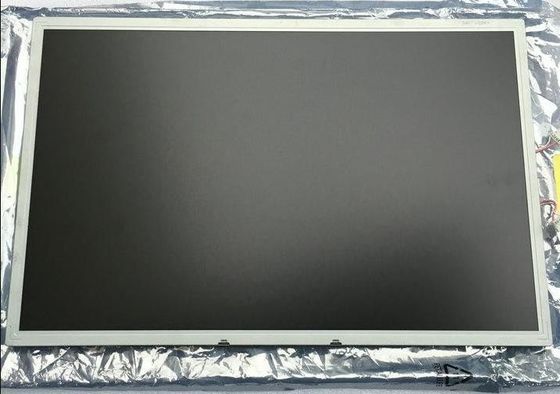

Product Details:
|
| MODEL NUMBER: | LM171WX3-TLC2 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 17.1INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1440(RGB)×900 (WXGA+) 99PPI |
| VIEWING ANGLEG: | 85/85/65/85 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED TTL Industrial Lcd Display,CCFL CSTN LCD Panel,VGA Lcd Video Panel |
||
| Basic Detail : | Manufacturer | Model Name | LM171WX3-TLC2 4 Compatible | |
|---|---|---|---|---|

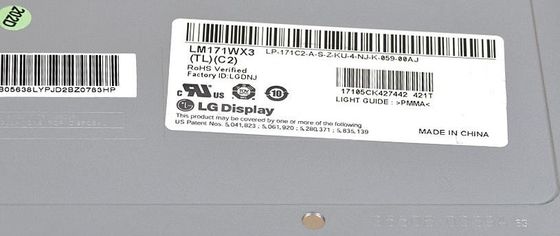

| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM171WX3 (TL)(C2) | |
| Panel Size | 17.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 2/6 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/65/85 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 62% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1440(RGB)×900 [WXGA+] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.085×0.255 mm | Pixel Pitch(W×H) | 0.255×0.255 mm [99PPI] | |
| Physical Size : | Active Viewing | 367.2(W)×229.5(H) mm | Overall Dim. | 389.2(W)×254.5(H) mm |
| Bezel Opening | 370.6(W)×232.9(H) mm | Overall Depth | 11.5±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.36/1.43Kgs (Typ./Max.) | Surface | Antiglare (Haze 12%), Hard coating (3H) |
| Signal Electrical : | Input Current | 575/878mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.88/3.3W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160C | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 40K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 2.5/8.0/9.0mA (Min./Typ./Max.) | Input Voltage | 615/645/815V (Min./Typ./Max.) | ||
| Frequency | 40/60/70KHz (Min./Typ./Max.) | Turn-on Voltage | 1000/1250V (Max.)(Ta=+25/0℃) | |||
| Consumption | 10.32/11.35W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BDBR-03(4.0)V-1S | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 12 pcs / box | 359×330×458 mm | - |
