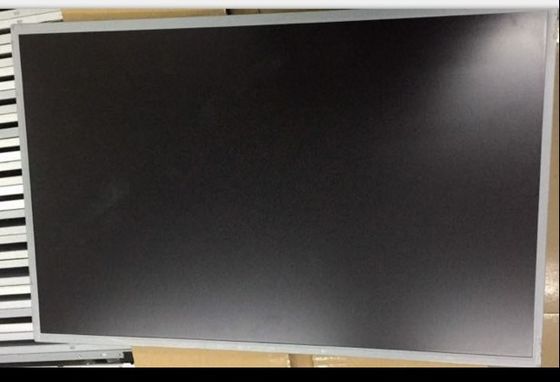

Product Details:
|
| MODEL NUMBER: | LM270WQ1-SDE3 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 27INCH | BRIGHTNESS: | 420CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 (Quad-HD) 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|

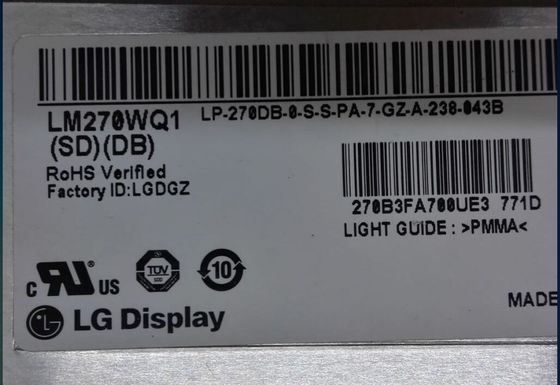

| LM270WQ1-SDE3 | a-Si TFT-LCD , LCM | LM270WQ1 (SD)(E3) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×1440, Quad-HD | RGB Vertical Stripe | 0.0777×0.2331 mm | 0.2331×0.2331 mm [108PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 596.736×335.664 mm | 601.7×340.7 mm | 630×376.13 mm | 14.76/22.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 4.60Kgs (Typ.) | - | Glare (Haze 0%), Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (14-M3) on left, right, up, down bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 420 cd/m² (Typ.) | H-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 6.5/7.5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6799K | 16.7M (8-bit) | X:0.308; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Left and Right) | 39K(Min.) | - | 6 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 36±5V | 350mA | 75.6/80.15W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | H401K-D12N-12B | 1 pcs | 12 pins | 2.0 mm | BLE-12PINS-ACACACACACAC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 900/1035mA (Typ./Max.) | 10.8/12.42W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (4 Lanes) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20525-030E-01 | 1 pcs | 30 pins | 0.4 mm | ||
| molex | 53780-8606 | 1 pcs | 6 pins | 1.25 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 7 pcs / box | - | 747×335×466 mm (L×W×H) |
