Product Details:
|
| MODEL NUMBER: | LP116WH6-SPA1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 11.6 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 135PPI |
| VIEWING ANGLEG: | 80/80/80/80 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||

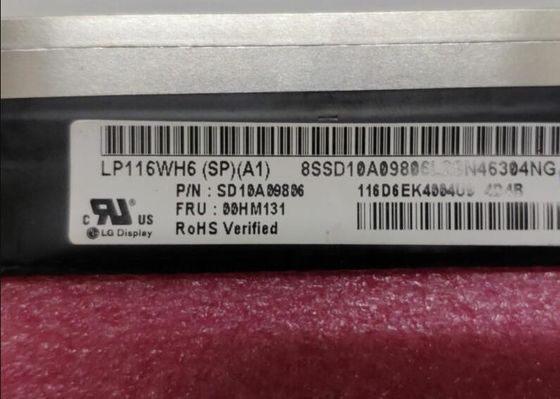

| Basic Detail : | Manufacturer | Model Name | LP116WH6-SPA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LP116WH6 (SP)(A1), LGD0000 | |
| Panel Size | 11.6 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 79% coverage |
| Adobe RGB | 61% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1366(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0625×0.1875 mm | Pixel Pitch(W×H) | 0.1875×0.1875 mm [135PPI] | |
| Physical Size : | Active Viewing | 256.125(W)×144(H) mm | Overall Dim. | 268.9(W)×158(H) mm |
| Bezel Opening | 260.15(W)×147.5(H) mm | Overall Depth | 3.0/3.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 200g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Signal Electrical : | Input Current | 258/296mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.85/0.98W (Typ./Max.) | Signal Interface | eDP (1 Lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | HD2S030HA1 | 1 pcs | 0.5 mm | 30 pins | EDP-30P1L-030A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 260/270mA (Typ./Max.) | Input Voltage | 6.0/12.0/20.0V (Min./Typ./Max.) | ||
| Consumption | 3.1/3.2W (Typ./Max.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 30 pcs / box | 488×365×244 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
