Product Details:
|

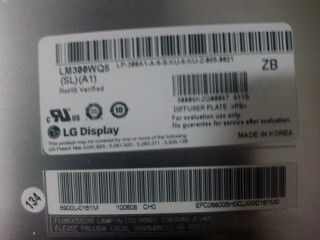

| MODEL NUMBER: | LM300WQ5-SLA2 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 30.0 Inch | BRIGHTNESS: | 370CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1600, WQXGA, 101PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | IPS Lcd Display Panels,NTSC Lcd Video Panel,Antiglare NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | LM300WQ5-SLA2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM300WQ5 (SL)(A2) | |
| Panel Size | 30.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 370 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6/6 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | H-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (10-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 102% | sRGB | 100% coverage |
| Adobe RGB | 98% coverage | DCI-P3 | 92% coverage | |
| Rec.2020 | 76% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 2560(RGB)×1600 [WQXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0835×0.2505 mm | Pixel Pitch(W×H) | 0.2505×0.2505 mm [101PPI] | |
| Physical Size : | Active Viewing | 641.28(W)×400.8(H) mm | Overall Dim. | 677.3(W)×436.8(H) mm |
| Bezel Opening | 646.3(W)×405.8(H) mm | Overall Depth | 42.3 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel | |
| Other Detail : | Mass | 4.60Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 720±108mA | Input Voltage | 18.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 13.0/14.95W (Typ./Max.) | Signal Interface | LVDS (4 ch, 10-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS050-C51B-C39-A | 1 pcs | 0.5 mm | 51 pins | ||
| UJU | IS050-C41B-C39-A | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 18 pcs | Life | 40K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | S14B-PH-SM3-TB | 1 pcs | 2.0 mm | 14 pins | ||
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Input Current | 4.5/5.4A (Typ./Max.) | Input Voltage | 24.0±2.0V | ||
| Consumption | 108/130W (Typ./Max.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 5 pcs / box | 756×343×515 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
