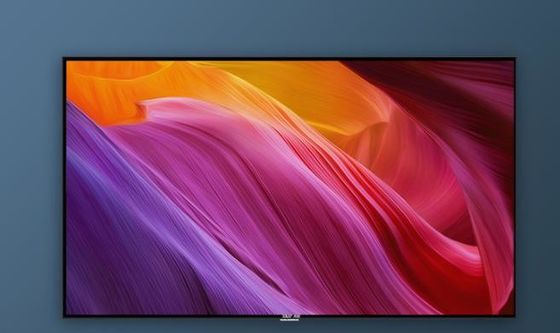

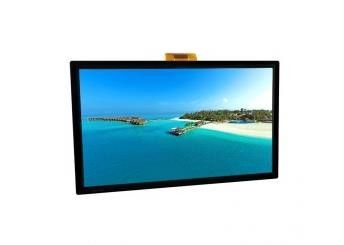

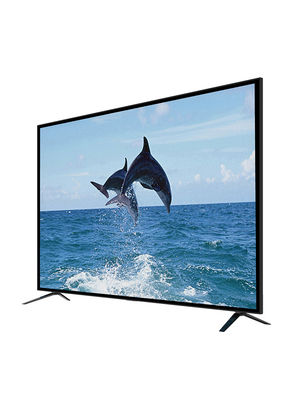

Product Details:
|
| MODEL NUMBER: | LC430DQF-FHA2 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 43.0 Inch | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 [UHD] 103PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C |
| High Light: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LC430DQF-FHA2 | a-Si TFT-LCD , LCM | LC430DQF (FH)(A2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 65 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 89/89/89/89 (Min.)(CR≥10) | 5 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 14065K | 16.7M/1.07B (8-bit / 8-bit + Dithering) | X:0.273; Y:0.260 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 84% | 100% | 80% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 84% | 63% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.14/1.25 (Typ./Max.)(5 points) | ||
| Panel Size : | 43" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.2451×0.2451 [103PPI] | 0.0817×0.2451 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 941.184(H) × 529.416(V) | - | 968.2(H) × 556.9(V) | 35.8 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 6.4/6.7Kgs (Typ./Max.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Direct light type | - | - | 50K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 39.48±2.4V | 160mA (Typ.) | 75W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JWT | A2010H00-12P | 2.0 mm | 12 pins | 1 pcs | ||
| JWT | A2010H00-13P | 2.0 mm | 13 pins | 1 pcs | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.77/1.00A (Typ./Max.) | 9.24/12.0W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | V-by-One 16 lane | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
| JAE | FI-RE41S-HF | 0.5 mm | 41 pins | 1 pcs | ||
| YEONHO | 20037WR-H05 | 2.0 mm | 5 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 16 pcs / box | - | 1300×1140×746 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
