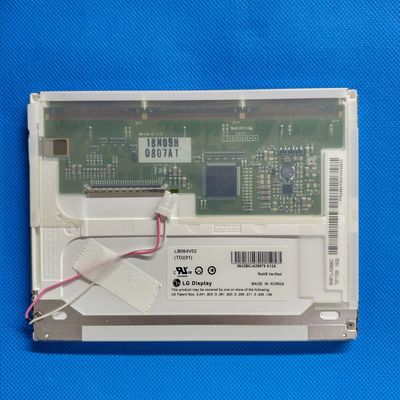

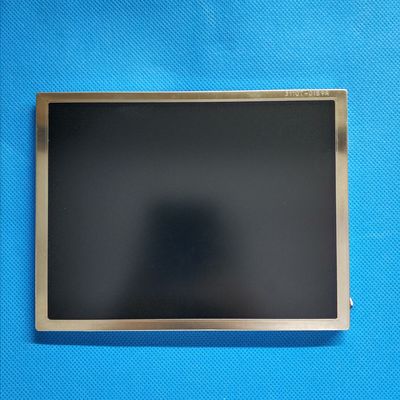

Product Details:
|
| MODEL NUMBER: | LB064V02-B1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 6.4 Inch | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 640(RGB)×480 [VGA] 124PPI |
| VIEWING ANGLEG: | 45/45/15/35 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | LB064V02-B1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LB064V02 (B1) | |
| Panel Size | 6.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
| Basic Information : | Luminance | 200 cd/m² (Typ.) | Contrast Ratio | - |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/30 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K (6-bit) |
| Color Temperature | - | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.068×0.204 mm | Pixel Pitch(W×H) | 0.204×0.204 mm [124PPI] | |
| Physical Size : | Active Viewing | 130.56(W)×97.92(H) mm | Overall Dim. | 145.5(W)×111.5(H) mm |
| Bezel Opening | 133.8(W)×101.1(H) mm | Overall Depth | 6.7±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | 4-wire Resistive Touch | |
| Fixation : | Side mounting holes (4-M2) | |||
| Other Detail : | Mass | 175/185g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 160mA (Typ.)(ICC) | Input Voltage | 3.3V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | 530mW (Typ.) | Signal Interface | TTL (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT101-30S-HR11 | 1 pcs | 1.0 mm | 30 pins | DRGB-30P1C6B-110A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 5.0mA (Typ.) | Input Voltage | 355V (Typ.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Turn-on Voltage | - | |||
| Consumption | 1.78W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 20 pcs / box | 325×271×197 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
