Product Details:
|
| MODEL NUMBER: | LC260EXN-SCB1 | SIZE: | 26.0 Inch |
|---|---|---|---|
| BRIGHTNESS: | 400CD/M2 | Lamp Type: | WLED |
| RESOLUTION: | 1366×768(RGB), WXGA, 60PPI | VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
| High Light: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LC260EXN-SCB1 | |
|---|---|---|---|---|
| Diagonal Size | 26.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LC260EXN (SC)(B1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1366×768(RGB) [WXGA] | Dot Pitch | 0.4215×0.1405 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.4215×0.4215 mm (H×V) [60PPI] | |
| Mechanical Size : | Display Area | 575.769×323.712 mm (H×V) | Bezel Area | 580.2×328.2 mm (H×V) |
| Outline Dim. | 613×361 mm (H×V) | Outline Depth | 10.3/15.9 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.86Kgs (Typ.) | Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | S-IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 8 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 9972K | White Uniformity | 1.30 (Max.)(5 points) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM14B-SRSS-TB | 1.0 mm | 14 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 24.0±1.2V | Current Input | 1.2A (Typ.) | ||
| Consumption | 28.8W | |||||
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 305/396mA (Typ./Max.) | ||
| Consumption | 3.66/5.27W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | KDF71G-30S-1H | 1.0 mm | 30 pins | 1 pcs | ||

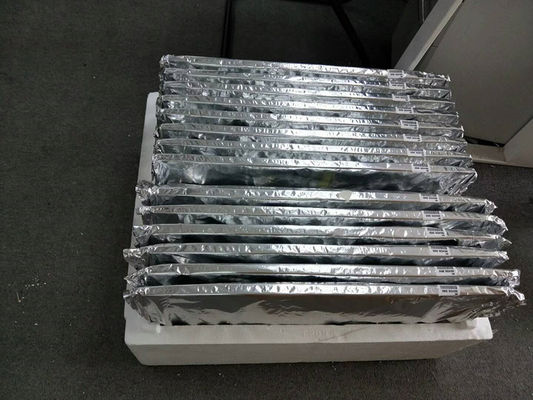

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 8 pcs / box | - | 690×350×442 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
