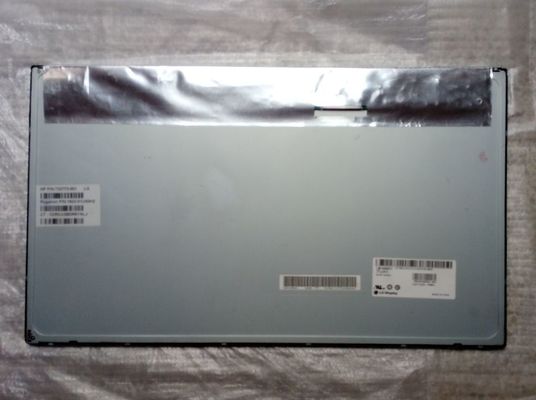

Product Details:
|

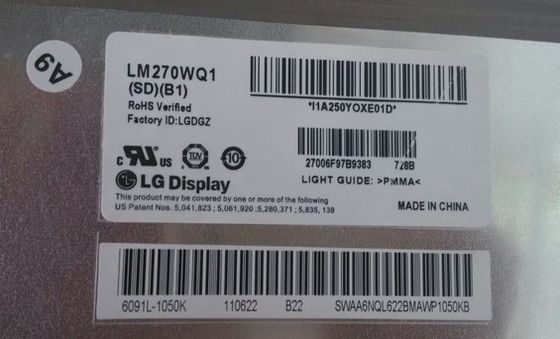

| MODEL NUMBER: | LM270WQ1-SDB1 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 420CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 [Quad-HD] 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Information : | Brand | Model | LM270WQ1-SDB1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 27.0" | Alias | LM270WQ1 (SD)(B1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.0777×0.2331 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2331×0.2331 (H×V) [108PPI] | |
| Mechanical Size : | Active Area(mm) | 596.736(H) × 335.664(V) | Bezel Area(mm) | 601.7(H) × 340.7(V) |
| Outline Dim.(mm) | 630(H) × 376.13(V) | Depth(mm) | 16.36/22.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (14-M3) on left, right, up, down bezel | |||
| Other Spec : | Weight | 4.60Kgs (Typ.) | Treatment | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Basic Information : | Luminance(cd/m²) | 420 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | H-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 6.5/7.5 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.308; Y:0.325 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6799K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 900/1035mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 10.8/12.42W (Typ./Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-X30SSL-HF | 1 pcs | 30 pins | 1.0 mm | ||
| JAE | FI-RE31S-HF | 1 pcs | 31 pins | 0.5 mm | ||
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type (Left and Right) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6 strings | Life Time | 39K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 36±5V | Current Supply | |||
| Consumption | 75.6/80.15W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | H401K-D12N-12B | 1 pcs | 12 pins | 2.0 mm | BLE-12PINS-ACACACACACAC | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 7 pcs / box | - | 747×335×466 mm (L×W×H) |
