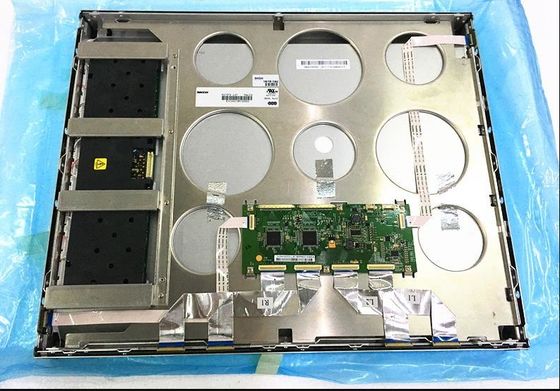

R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY
R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: R213T1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS

R213T1-L01 CMO 21.3" 2560(RGB)×2048 1000 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: R213T1-L01 BRAND: INNOLUX
SIZE: 21.3 Inch BRIGHTNESS: 1000CD/M2
Lamp Type: WLED RESOLUTION: 2560(LCR)×2048 (QSXGA) 153PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

CMO R213T1-L01 Application Details

Basic Information : Brand   Model R213T1-L01 1 Compatible
Type LCM a-Si TFT-LCD Used For
Screen Size 21.3" Alias IAQS80F
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C



CMO R213T1-L01 Mechanical Details

Pixel Features : Resolution 2560(LCR)×2048, QSXGA Dot Pitch(mm) 0.055×0.165 (H×V)
Pixel Format LCR Vertical Stripe Pixel Pitch(mm) 0.165×0.165 (H×V) [153PPI]
Mechanical Size : Active Area(mm) 422.4(H) × 337.92(V) Bezel Area(mm) 426.4(H) × 344.5(V)
Outline Dim.(mm) 459.8(H) × 375.3(V) Depth(mm) 49.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 5:4 (H:V) Orientation Landscape type
Mounting : Side mounting holes (6-M3) on left, right bezel
Other Spec : Weight 2.97Kgs (Typ.) Treatment -



CMO R213T1-L01 Optical Details

Basic Information : Luminance(cd/m²) 1000 (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)  Display Mode DD-IPS, Normally Black, Transmissive
Best View on Symmetry Response(ms) 25/25 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.294; Y:0.309 Display Colors Grayscale (8-bit)
Color Temperature 7984K White Uniformity -
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity



CMO R213T1-L01 Interface Details

Signal Electrical : Voltage Supply 12.0V (Typ.) Current Supply 0.7/1.7A (Min./Max.)
Consumption 8.1/18.3W (Typ.)
Signal Type : LVDS (4 ch, 8-bit) Signal Voltage -
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JAE FI-X30S-HF-NPB 2 pcs 30 pins 1.0 mm
JAE IL-Z-8PL-SMTY 1 pcs 8 pins 1.25 mm
JAE IL-Z-5PL-SMTY 1 pcs 5 pins 1.25 mm



CMO R213T1-L01 Backlight Details

Backlight Features: Shape Straight Type CCFL Position Direct light type
Replacement - Quantity 12 pcs Life Time 50K(Typ.) (Hours)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST B12B-PH-SM4-TB(LF)(SN) 1 pcs 12 pins 2.0 mm
Backlight Driver : With Inverter
Driver Electrical : Voltage Supply 12.0V (Typ.) Current Supply 3.0/3.7/4.2A (Min./Typ./Max.)
Consumption 44/50W (Typ./Max.)



CMO R213T1-L01 Electronics Details

Frame Rate : 60Hz
Reverse Scan : No
Power Consumption : 52.1W (Typ.)
