Product Details:
|

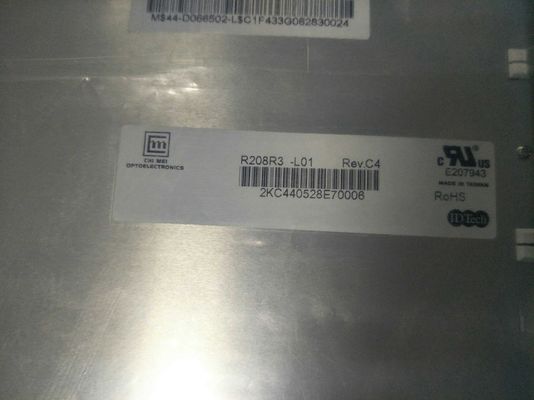

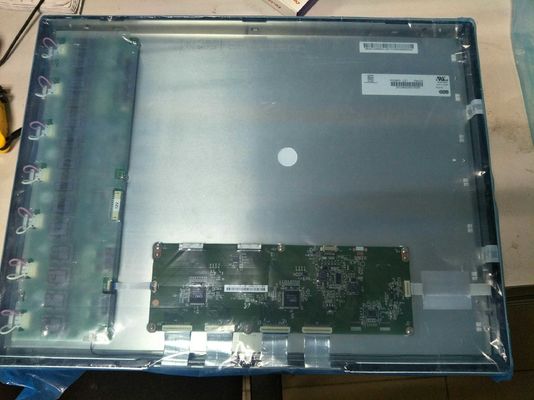

| MODEL NUMBER: | R208R3-L01 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 20.8 Inch | BRIGHTNESS: | 600CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2048(RGB)×1536 (QXGA) 122PPI |
| VIEWING ANGLEG: | 88/88/88/88 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Highlight: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| R208R3-L01 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 20.8 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2048(RGB)×1536, QXGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 423.9×318 mm | 427.9×322.0 mm | 457×350 mm | 45.0/45.8 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (8-M3) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.58Kgs (Max.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 10/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7984K | 16.7M (8-bit) | X:0.294; Y:0.309 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 98% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.76/1.1A (Typ./Max.) | 12.0V (Typ.) | 9.12/11.85W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (4 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-WE31P-HFE | 2 pcs | 1.25 mm | 31 pins | ||
| JAE | IL-Z-8PL-SMTYE | 1 pcs | 1.25 mm | 8 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | Straight | 14 pcs | 50K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.0/6.0/8.0mA (Min./Typ./Max.) | 800±80V | 70.98W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1250/1380V (Max.)(Ta=+25/0℃) | 40/80KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | With Inverter | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | S12B-PH-SM3-TB | 1 pcs | 2.0 mm | 12 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 6.5/7.0A (Typ./Max.) | 12.0±0.8V | 78/84W (Typ./Max.) | ||||
| Power Consumption : | 76.32W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
