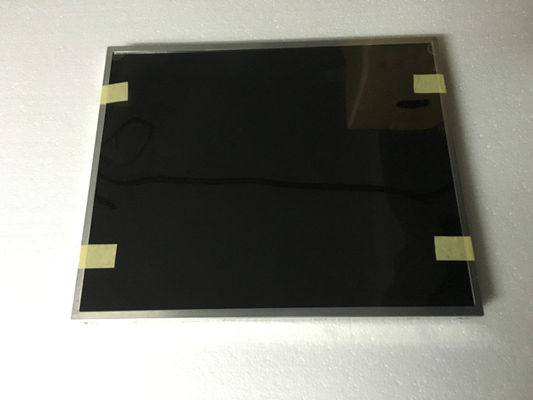

Product Details:
|
| MODEL NUMBER: | R190E5-L01 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 19.0INCH | BRIGHTNESS: | 1300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(LCR)×1024, SXGA, 86PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥20) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| R190E5-L01 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 55 °C | -20 ~ 60 °C |
| Screen Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(LCR)×1024, SXGA | LCR Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 376.32×301.056 mm | 380.3×305.0 mm | 396×324 mm | 27.1/37.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.70/1.80Kgs (Typ./Max.) | - | Antiglare | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 1300 cd/m² (Typ.) | DD-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥20) | 15/5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7984K | Grayscale (8-bit) | X:0.294; Y:0.309 | |
| White Uniformity : | 1.43 (Max.) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | 50K(Min.) | 14 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 720±72V | 4.2±0.5mA | |||||
| Operating Frequency | Startup Voltage | |||||
| 40/60KHz (Min./Max.) | 1065/1330V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| With Inverter | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | B12B-PH-SM4-TB | 1 pcs | 12 pins | 2.0 mm | ||
| CCFL Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±0.6V | 3.4A (Typ.) | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 0.32/0.448A (Typ./Max.) | 3.84/5.65W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSAKT2407P30A | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160H | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
