R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Certification
China Sapientia Display Co.,LIMITED certification
Customer Reviews
Dear Kay, We receive the product yesterday,your goods are superior in quality compared with other supplier. Thank you for your help. Best and Regards, Adam

—— Adam Davis

Thank you for your good service and product,hope our cooperation can be even more long-time and be happy!

—— Eric Wilson

I'm Online Chat Now

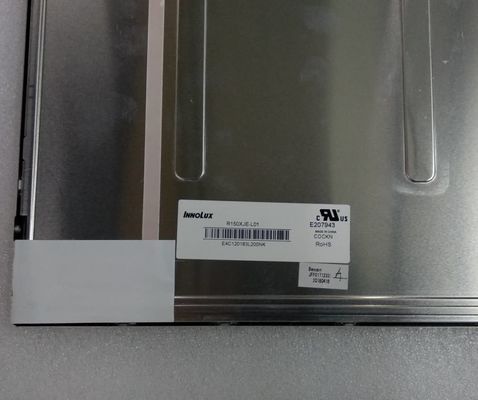

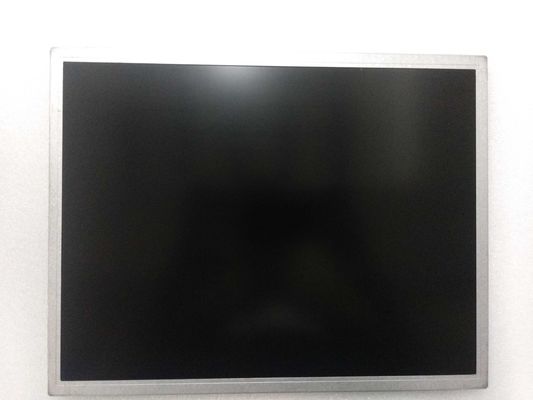

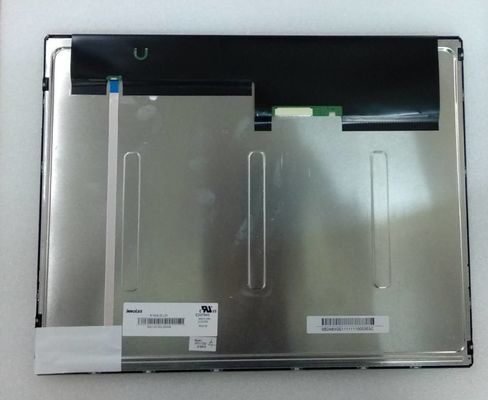

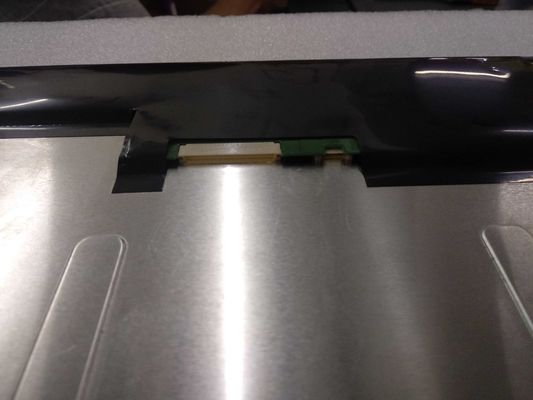

R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY
R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: R150XJE-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

R150XJE-L01 Innolux 15.0" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: R150XJE-L01 BRAND: INNOLUX
SIZE: 15.0 Inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×768 [XGA] 85PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -25 ~ 65 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Innolux R150XJE-L01 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  R150XJE-L01 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -10 ~ 65 °C -25 ~ 65 °C



Innolux R150XJE-L01 Mechanical Features

Screen Size : 15.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1024(RGB)×768, XGA RGB Vertical Stripe 0.099×0.297 mm 0.297×0.297 mm [85PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
304.128×228.096 mm 307.4×231.3 mm 326.5×253.5 mm 9.1/9.6 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
700±50g - Antiglare, Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel



Innolux R150XJE-L01 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) Super MVA, Normally Black, Transmissive 2500:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 15/10 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
7274K 262K/16.2M (6-bit / 6-bit + FRC) X:0.300; Y:0.325
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 95% 73%
DCI-P3 Coverage Rec.2020 Coverage Remarks
74% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)



Innolux R150XJE-L01 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 50K(Min.) - - Replaceable
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
CviLux CI4205M2HRP-NH 1 pcs 5 pins 1.25 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
12.0±1.2V 0.6±0.2A 7.9W (Max.)



Innolux R150XJE-L01 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 590/690mA (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 6/8-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS DF14H-20P-1.25H(56) 1 pcs 20 pins 1.25 mm LVDS-20P1C8B-010F



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
