Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI  350 cd/m² INDUSTRIAL LCD DISPLAY
Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI  350 cd/m² INDUSTRIAL LCD DISPLAY Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI  350 cd/m² INDUSTRIAL LCD DISPLAY Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI  350 cd/m² INDUSTRIAL LCD DISPLAY

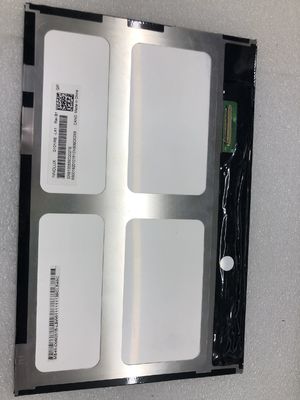

Large Image :  Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: Q101IRE-LA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: Q101IRE-LA1 BRAND: INNOLUX
SIZE: 10.1 Inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×800 [WXGA] 149PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Chimei Innolux Q101IRE-LA1 Optical Details

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)  Operating Mode AAS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Support Color 16.7M (8-bit)
Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(13 points)



Chimei Innolux Q101IRE-LA1 Application Details

Basic Detail : Manufacturer   Model Name Q101IRE-LA1
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 10.1 inch Designed For
Maximum Ratings : OP Temperature -10 ~ 50 °C ST Temperature -20 ~ 60 °C



Chimei Innolux Q101IRE-LA1 Mechanical Details

Pixel Features : Number of Pixel 1280(RGB)×800 [WXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0565×0.1695 mm Pixel Pitch(W×H) 0.1695×0.1695 mm [149PPI]
Physical Size : Active Viewing 216.96(W)×135.6(H) mm Overall Dim. 228.6(W)×149.2(H) mm
Bezel Opening - Overall Depth 2.6/4.48 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:10 Shape Style
Fixation : Without
Other Detail : Mass 160g (Max.) Surface Hard coating





Chimei Innolux Q101IRE-LA1 Mechanical Details

Pixel Features : Number of Pixel 1280(RGB)×800 [WXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0565×0.1695 mm Pixel Pitch(W×H) 0.1695×0.1695 mm [149PPI]
Physical Size : Active Viewing 216.96(W)×135.6(H) mm Overall Dim. 228.6(W)×149.2(H) mm
Bezel Opening - Overall Depth 2.6/4.48 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:10 Shape Style
Fixation : Without
Other Detail : Mass 160g (Max.) Surface Hard coating



Chimei Innolux Q101IRE-LA1 Interface Details

Signal Electrical : Input Current 255/348mA (Typ./Max.) Input Voltage 3.7V (Typ.)
Consumption - Signal Interface LVDS (1 ch, 8-bit)

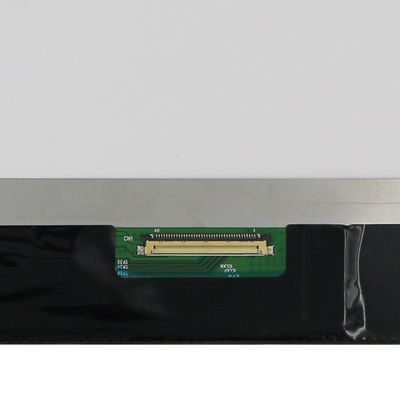

Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
STM MSAK24025P40 1 pcs 0.5 mm 40 pins



Chimei Innolux Q101IRE-LA1 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type (Bottom side)
Exchange - Amount - Life -
Interface Features : Position - Physical Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Input Current 830/837mA (Typ./Max.) Input Voltage 3.7V (Typ.)



Chimei Innolux Q101IRE-LA1 Packing Details

Package Box : Amount Size (L×W×H) Weight
40 pcs / box 530×355×255 mm 12.6±0.63 Kgs



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



Q101IRE-LA1 Chimei Innolux 10.1" 1280(RGB)×800, WXGA, 149PPI  350 cd/m² INDUSTRIAL LCD DISPLAY 0
