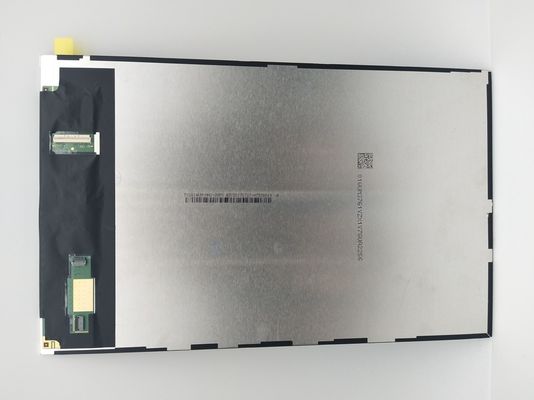

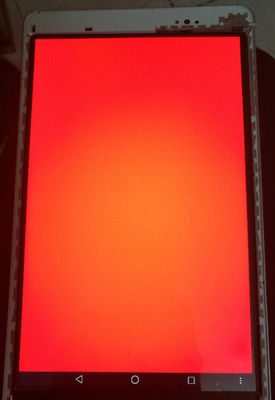

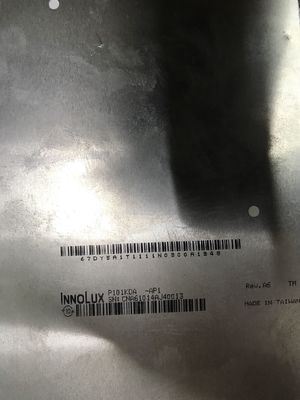

P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY
P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: P101KDA-AP1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

P101KDA-AP1 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: P101KDA-AP1 BRAND: INNOLUX
SIZE: 10.1INCH BRIGHTNESS: 400 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1200(RGB)×1920 [WUXGA] 225PPI
VIEWING ANGLEG: 70/70/60/70 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Innolux P101KDA-AP1 Application Details

Basic Info : Panel Brand   Panel Model P101KDA-AP1
Diagonal Size 10.1" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -10 ~ 60 °C Storage Temp. -20 ~ 60 °C



Innolux P101KDA-AP1 Mechanical Details

Pixel Features : Pixel Format 1200(RGB)×1920 [WUXGA] Dot Pitch 0.0376×0.1128 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1128×0.1128 mm (H×V) [225PPI]
Mechanical Size : Display Area 135.36×216.576 mm (H×V) Bezel Area -
Outline Dim. 143×227.93 mm (H×V) Outline Depth 2.2/4.1 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Portrait type
Aspect Ratio 10:16 (H:V) Shape Style
Holes & Brackets : Without
Other Features : Weight 130g (Max.) Surface Glare (Haze 0%), Hard coating (3H)



Innolux P101KDA-AP1 Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time 25 (Typ.)(Tr+Td); 45 (Typ.)(G to G) (ms)
Color Performance : Chromaticity Wx:0.300; Wy:0.310 Color Numbers 16.7M (8-bit)
Color Temperature 7525K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)



Innolux P101KDA-AP1 Backlight Details

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 15K(Min.) (Hours)
Replacement - Amount 4 strings Position Edge light type
Lamp Electrical : Voltage Input 23.2±2.4V Current Input 20mA (Typ.)
Consumption 2.1W (Max.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No



Innolux P101KDA-AP1 Interface Details

Signal Systerm : MIPI (4 data lanes) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 0.15A (Typ.)

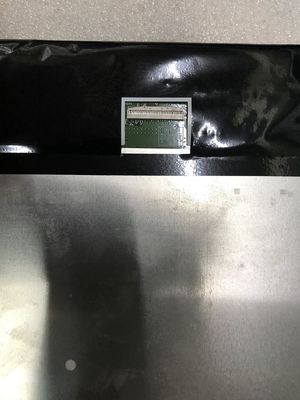

Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
I-PEX 20718-051E-01 0.3 mm 51 pins 1 pcs
