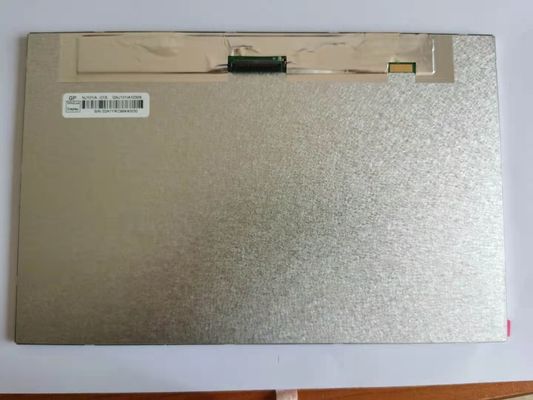

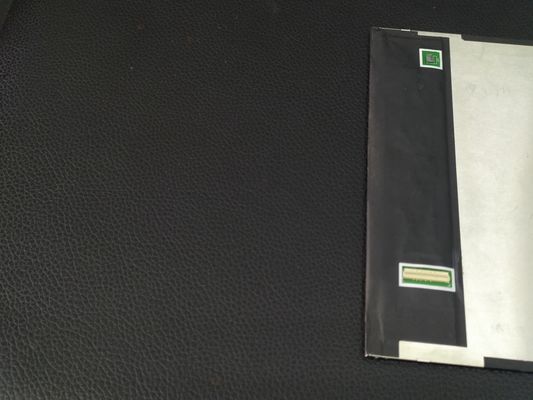

P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY
P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: P101KDA-AF4
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

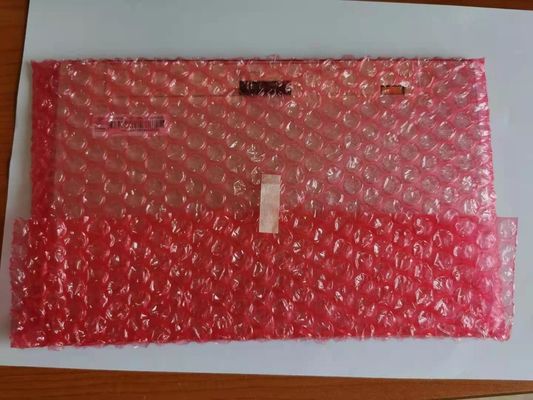

Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

P101KDA-AF4 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: P101KDA-AF4 BRAND: INNOLUX
SIZE: 10.1INCH BRIGHTNESS: 400 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1200(RGB)×1920, WUXGA, 225PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Innolux P101KDA-AF4 Application Details

Basic Detail : Manufacturer   Model Name P101KDA-AF4
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 10.1 inch Designed For
Maximum Ratings : OP Temperature -10 ~ 60 °C ST Temperature -20 ~ 70 °C



Innolux P101KDA-AF4 Optical Details

Basic Information : Luminance 400 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)  Operating Mode AAS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.300; Wy:0.320 Support Color 16.7M (8-bit)
Color Temperature 7351K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 70% sRGB 98% coverage
Adobe RGB 73% coverage DCI-P3 73% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux P101KDA-AF4 Mechanical Details

Pixel Features : Number of Pixel 1200(RGB)×1920 [WUXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0376×0.1128 mm Pixel Pitch(W×H) 0.1128×0.1128 mm [225PPI]
Physical Size : Active Viewing 135.36(W)×216.576(H) mm Overall Dim. 142.96(W)×227.926(H) mm
Bezel Opening - Overall Depth 1.85/3.8 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Portrait type
Aspect Ratio(W:H) 10:16 Shape Style
Fixation : Without
Other Detail : Mass 105g (Max.) Surface Hard coating



Innolux P101KDA-AF4 Interface Details

Signal Electrical : Input Current 0.13/0.15A (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface MIPI (4 data lanes)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
I-PEX 20655-045E-01 1 pcs 0.3 mm 45 pins



Innolux P101KDA-AF4 Lightting Details

Lamp Features: Lamp Shape 4 strings Lamp Type WLED Position Edge light type
Exchange - Amount 4 strings Life 15K(Min.) (Hours)
Lamp Electrical : Input Current 22mA (Typ.) Input Voltage 22.4/24.3V (Typ./Max.)
Consumption 2.14W (Max.)
Interface Features : Position - Physical Type Included in panel signal interface
Backlight Driver : No
