P101KDA-AF0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

P101KDA-AF0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY
P101KDA-AF0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY P101KDA-AF0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

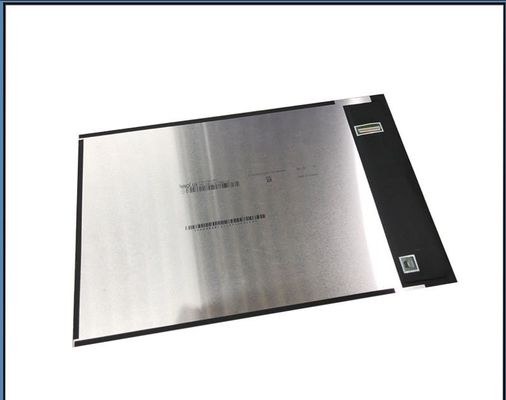

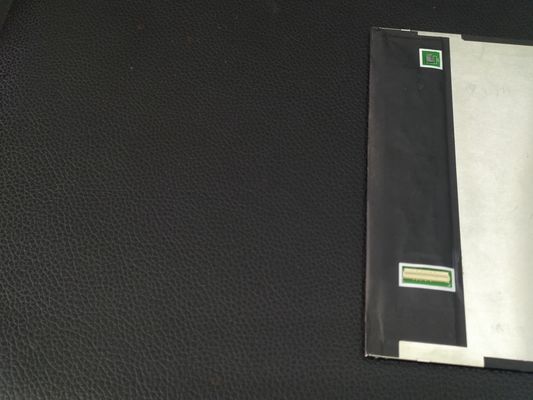

Large Image :  P101KDA-AF0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: P101KDA-AF0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS

P101KDA-AF0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: P101KDA-AF0 BRAND: INNOLUX
SIZE: 10.1INCH BRIGHTNESS: 400 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1200(RGB)×1920 (WUXGA) 225PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10 TEMPERATURE RANGE: Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Innolux P101KDA-AF0 Application Details

Basic Info : Panel Brand   Panel Model P101KDA-AF0
Diagonal Size 10.1" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -10 ~ 60 °C Storage Temp. -20 ~ 70 °C



Innolux P101KDA-AF0 Mechanical Details

Pixel Features : Pixel Format 1200(RGB)×1920 [WUXGA] Dot Pitch 0.0376×0.1128 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1128×0.1128 mm (H×V) [225PPI]
Mechanical Size : Display Area 135.36×216.576 mm (H×V) Bezel Area -
Outline Dim. 142.96×227.926 mm (H×V) Outline Depth 1.85/3.8 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Portrait type
Aspect Ratio 10:16 (H:V) Shape Style
Holes & Brackets : Without
Other Features : Weight 105g (Max.) Surface Hard coating



Innolux P101KDA-AF0 Optical Details

Basic Information : Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode AAS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 25 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.300; Wy:0.320 Color Numbers 16.7M (8-bit)
Color Temperature 7351K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 70% sRGB 98% coverage
Adobe RGB 73% coverage DCI-P3 73% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux P101KDA-AF0 Backlight Details

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 15K(Min.) (Hours)
Replacement - Amount 4 strings Position Edge light type
Lamp Electrical : Voltage Input 22.4/24.3V (Typ./Max.) Current Input 22mA (Typ.)
Consumption 2.14W (Max.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No



Innolux P101KDA-AF0 Interface Details

Signal Systerm : MIPI (4 data lanes) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 0.13/0.15A (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
HRS FH35C-45S-0.3SHW(50) 0.3 mm 45 pins 1 pcs



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
